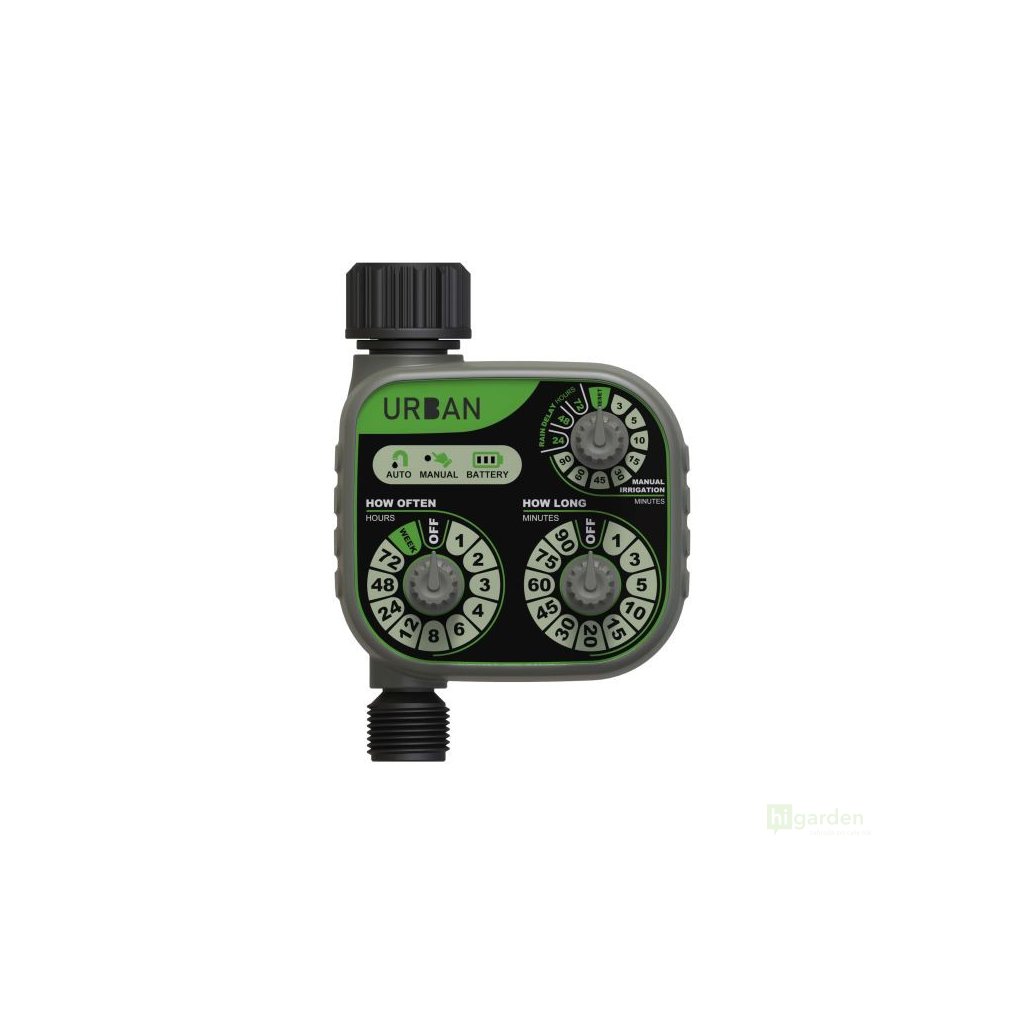

Urban Analog Hose Timer, three-button timer

Product detailed description

Analogue timer with 3 rotary controls

Features

• Easy operation
• Automatic watering mode
• Manual watering mode
• Rain delay function
• Battery status indication

Technical specifications

• 1” or ¾” inlet thread and ¾” outlet thread
• Watering frequency: 1–72 hours or weekly
• Watering duration: 1–90 minutes
• Watering delay: 24, 48 or 72 hours
• Protection class: IP55
• Power supply: 2 × AA batteries
• Operating pressure: 0.5–8 bar (7–116 PSI)
• Flow rate: 5–35 l/min
• Dimensions: 110 × 149.7 × 62.5 mm

If the flow rate decreases, the usual cause is a clogged filter. We recommend replacing it with replacement filter for Urban irrigation timers.

The device requires a minimum water pressure of 0.5 bar and is therefore not suitable for gravity-fed irrigation systems. Connection to the water supply is ideal.
