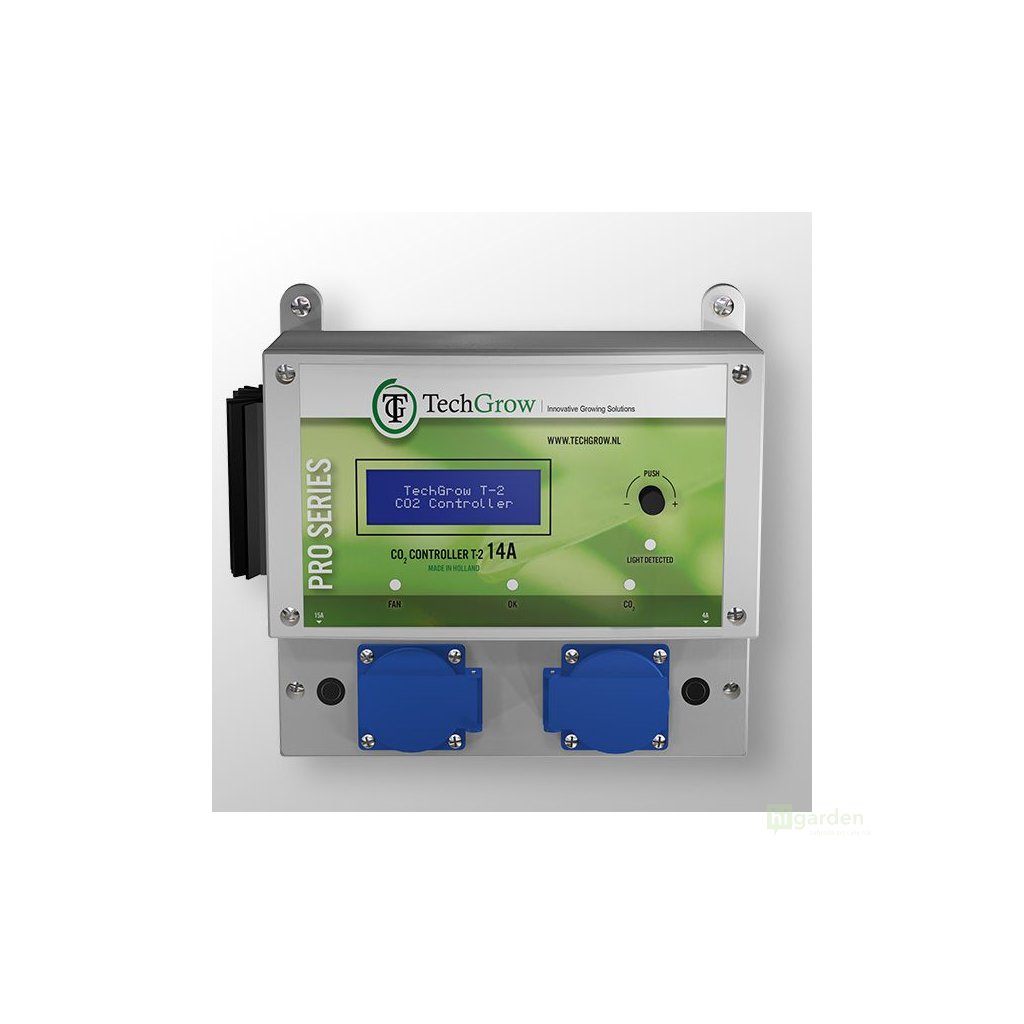

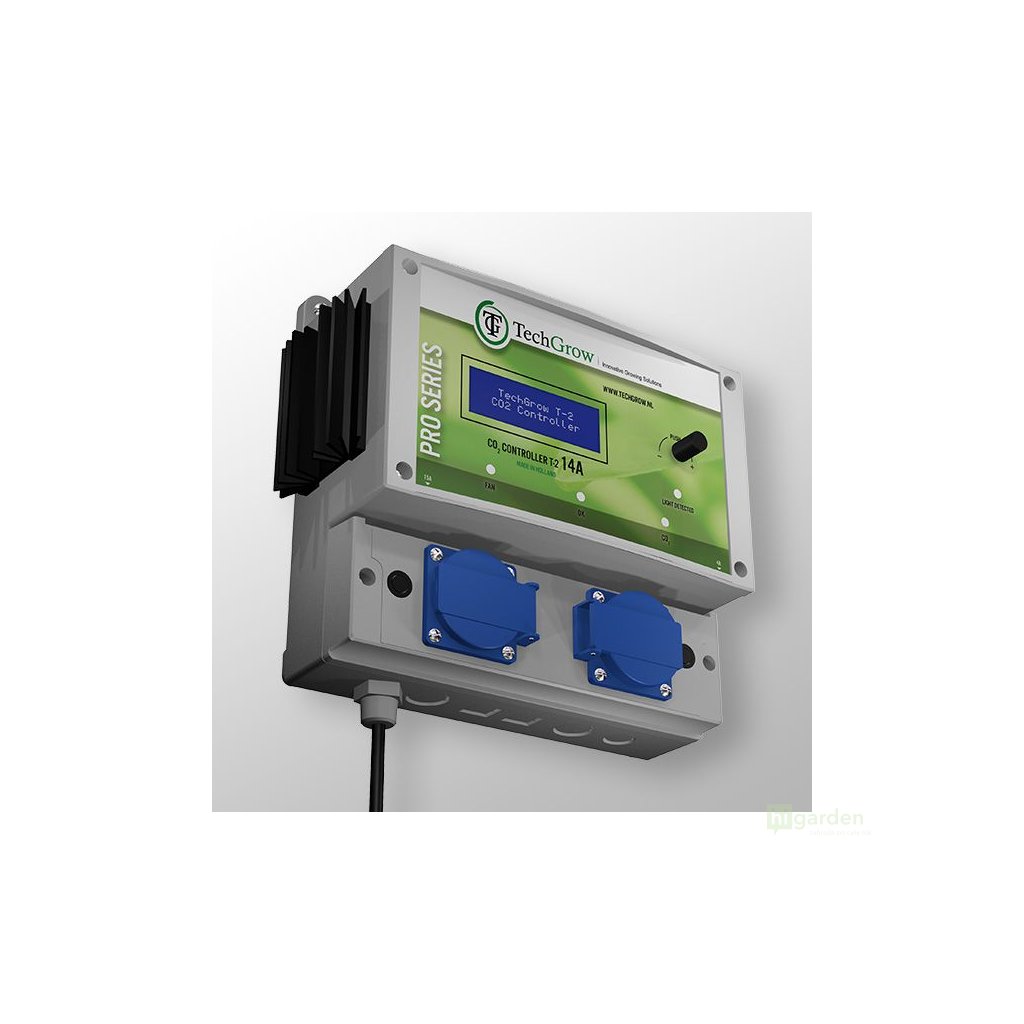

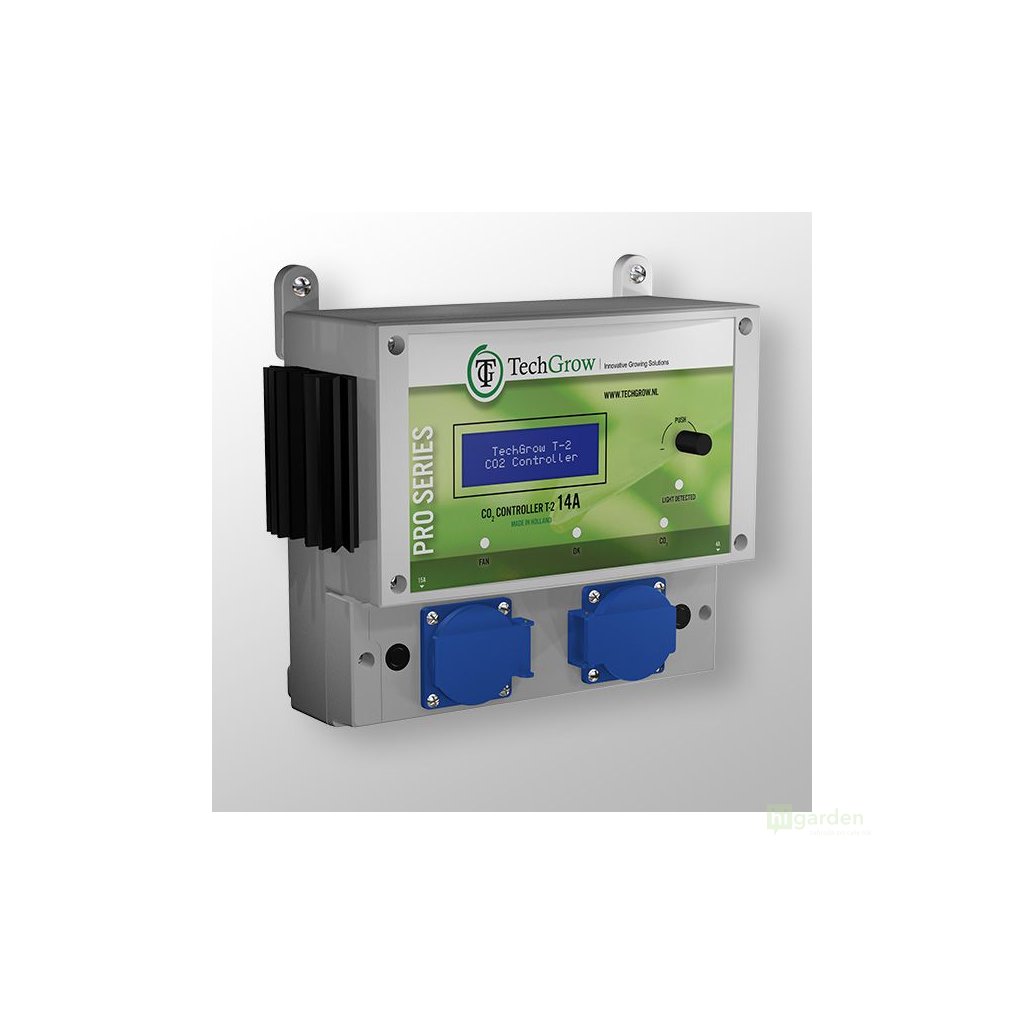

TechGrow T-2 Pro CO2 Controller 14A

Product detailed description

The T-2 Pro CO2 Controller by Tech Grow is an improvement of the T-1 Controller. It measures the CO2 levels, temperature and humidity and adjusts them to reach and maintain the pre-set value. This all-in-one solution is an advanced yet simple way to maintain the perfect environment.

The T-2 Pro has an automatic CO2 dosing counter, a delay and a timer. It logs the CO2 doses for 7 days. The ventilator controls are smooth - the temperature changes gradually and won't stress the plants. The device has simple controls and a clear LCD display.

The T-2 Pro CO2 Controller allows you to give your plants the best possible environment to stimulate their growth and keep it constant.

The basic package doesn't contain a sensor. We recommend the TechGrow S-4 CO2 sensor (2000ppm), the only compatible sensor we offer.

• Measures and regulates CO2 levels, temperature and humidity at the same time
• Well organised menu
• Removes excess CO2 (during the night)
• Displays current temperature, CO2 and humidity levels (including the min. and max. measured values)
• Adjustable pulse dosing, dosing delay and timer
• Automatic CO2 dosing counter, logged for seven days
• Calibration function (for CO2 and temperature)
• Display updates every second
• All settings are saved in case of a power outage
• LED indicators show CO2 dosage, light detection (if connected to sensor) and stable climate
• Suitable for fans up to 10,000 m3/hour

• Fan and CO2 relays are fused separately.

• Automatic switch between day and night mode (if connected to a light sensor)
• Automatic detection of cable failure (damage) or bad connection with the sensor
• UTP cable (5m) and ports

Features:
Range: 300-2000 ppm / 300 – 10,000 (requires 0-10.000 PPM sensor)
CO2 hysteresis: 10 - 200 ppm (we recommend 50 ppm)
Temperature range: 10°C to 45°C
Temperature hysteresis: 0°C to 5°C
Humidity range: 0 to 100 % RH
Humidity hysteresis: 10 to 100 % RH
Day/night detection: Yes
Light sensor: In CO2 sensor

Technical details:
Power input: 100/240 volt 50/60 Hz
CO2 power output: 100 – 220 V
Fan output: 14 Amp
Internal use: 3 Watt
CO2 relays: 8 Amp
CO2 Fuse: 4 Amp
Triac: 24 Amp
Ventilation fuse: 15 Amp
Power cord: 3x1,5mm / 1,7m
Relays switching capacity:  8 Amp
Relays rating: AC 5A
Dimensions: 21x24x10cm (package: 25x29x17cm)
Weight: 1550g (package: 2100g)

The package contains:
TechGrow T-2 Pro CO2 Controller 14A
Mounting kit
UTP cable (5m)
Spare fuse
User manual

If you have any additional questions, contact us at info@higarden.eu.
