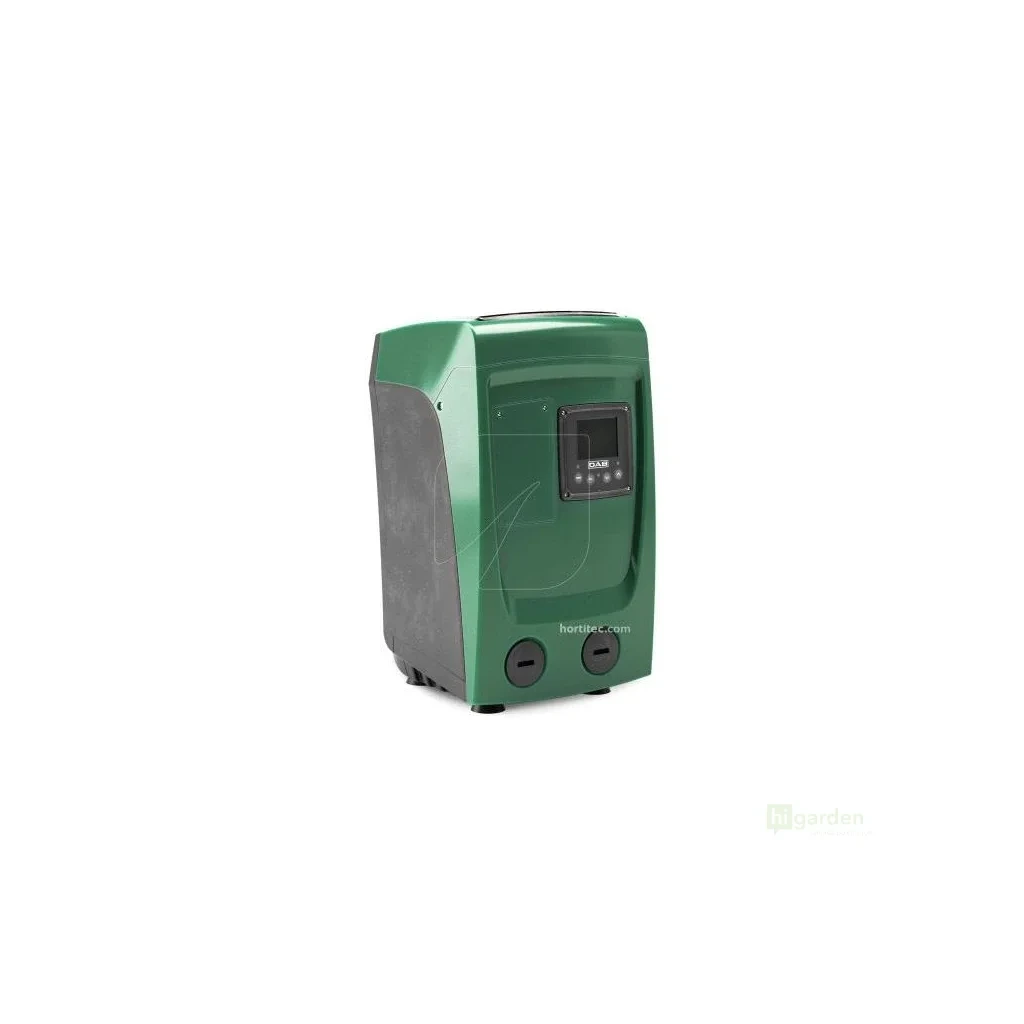

DAB Esybox Mini 3 Compact Unit

Product detailed description

DAB Esybox Mini 3 is a compact automatic domestic water booster with an integrated frequency converter, designed for supplying households with water, pressure boosting and irrigation systems. Thanks to inverter technology, it maintains constant pressure in the system, increases ease of use and at the same time optimises energy efficiency.

It is a complete solution ready for installation without the need to add any other components. Integrated pressure and flow sensors automatically adapt performance to the current water demand, while the clear LCD display allows easy setting and operation monitoring.

Main advantages:

• adjustable constant pressure from 1 to 5.5 bar
• inverter technology for economical operation
• integrated self-priming multistage pump
• automatic control using pressure and flow sensors
• rotating high-resolution LCD display
• integrated 1 l expansion vessel
• built-in DConnect connectivity for remote management
• possibility of connecting up to two units into a pressure set
• quiet operation suitable for living spaces
• installation in both horizontal and vertical position

Technical specification:

• Power supply: 1 × 220–240 V
• Maximum input power (P1): 0.85 kW
• Motor power: 1.1 HP
• Rated current: 4.8 A
• Maximum flow rate: 4.8 m³/h
• Maximum head: 55 m
• Adjustable pressure: 1–5.5 bar
• Maximum working pressure: 7.5 bar
• Maximum suction depth: 8 m
• Liquid temperature: 0 to 35 °C (domestic use), up to 40 °C (other use)
• Maximum ambient temperature: 50 °C
• Protection rating: IPX4
• Insulation class: F
• Noise level: 45 dB(A)
• Weight: 14.6 kg
