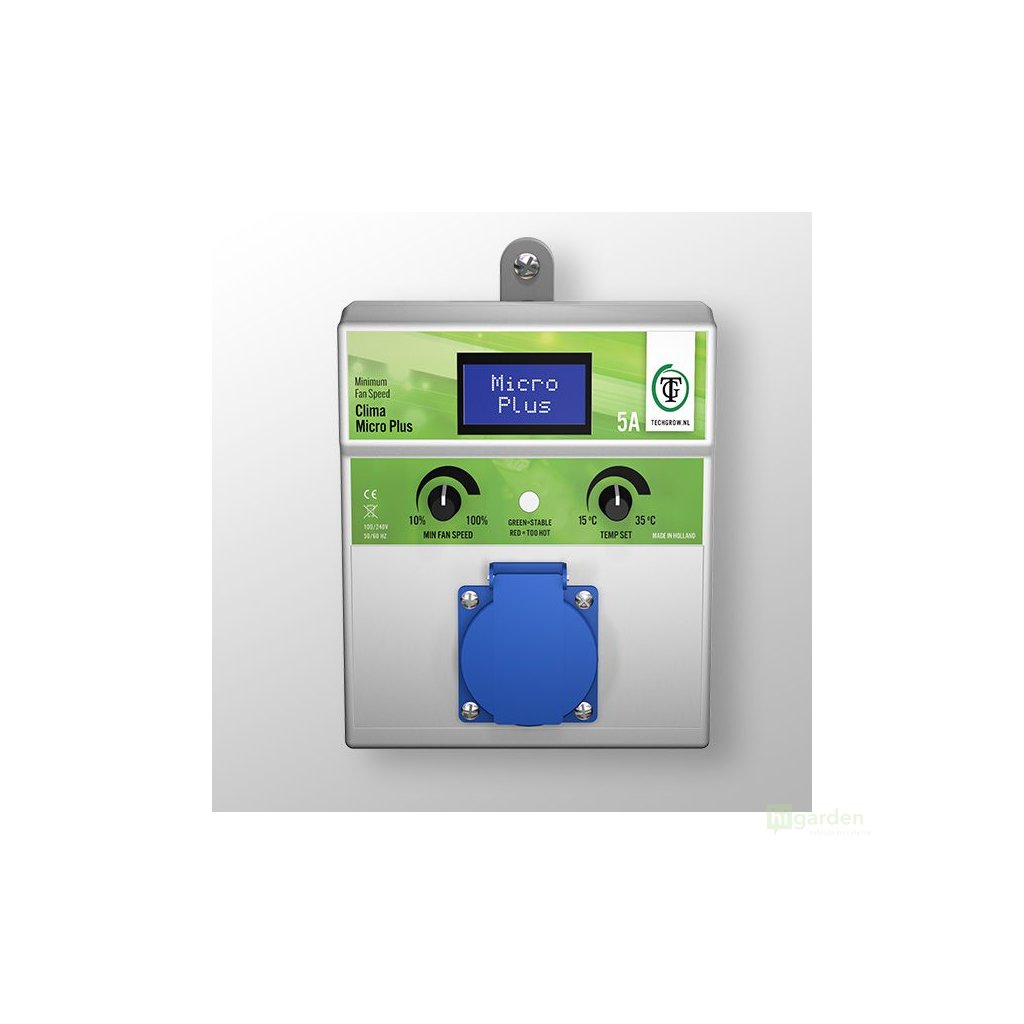

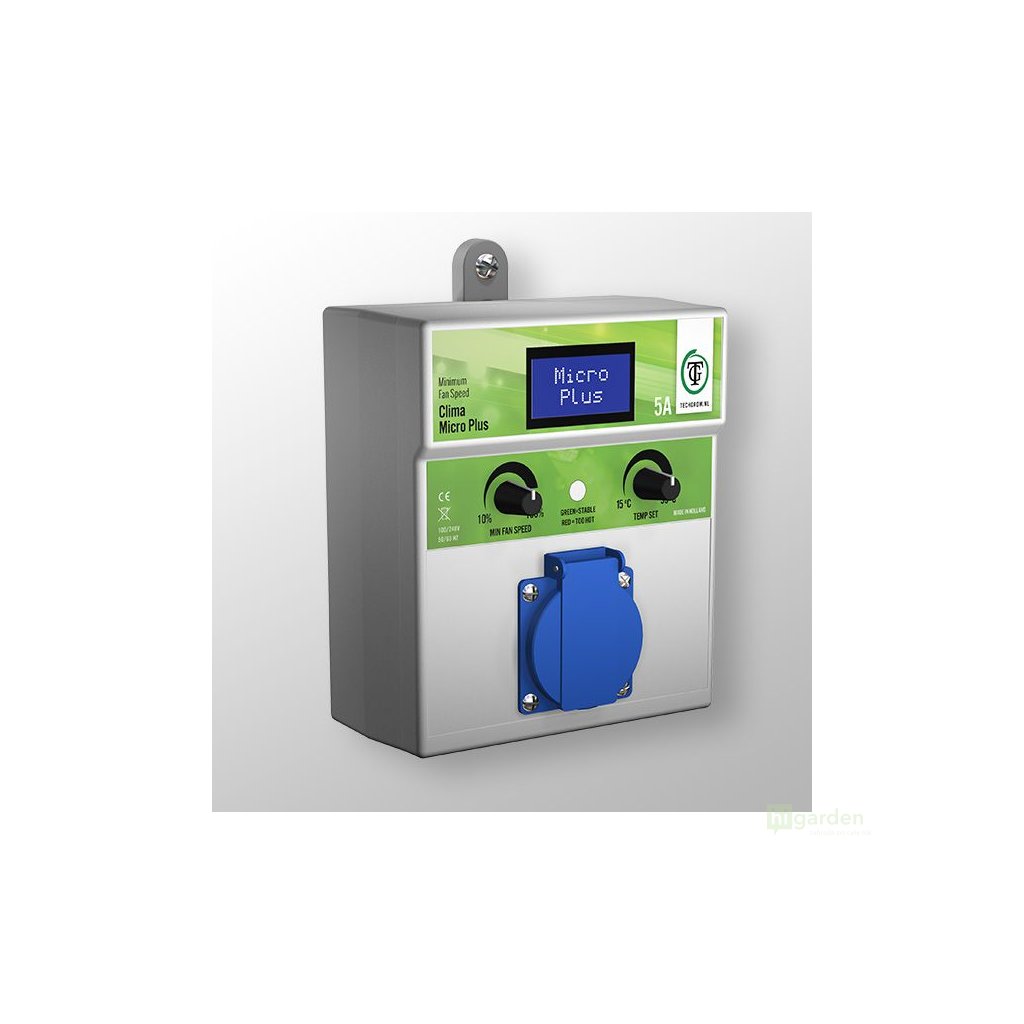

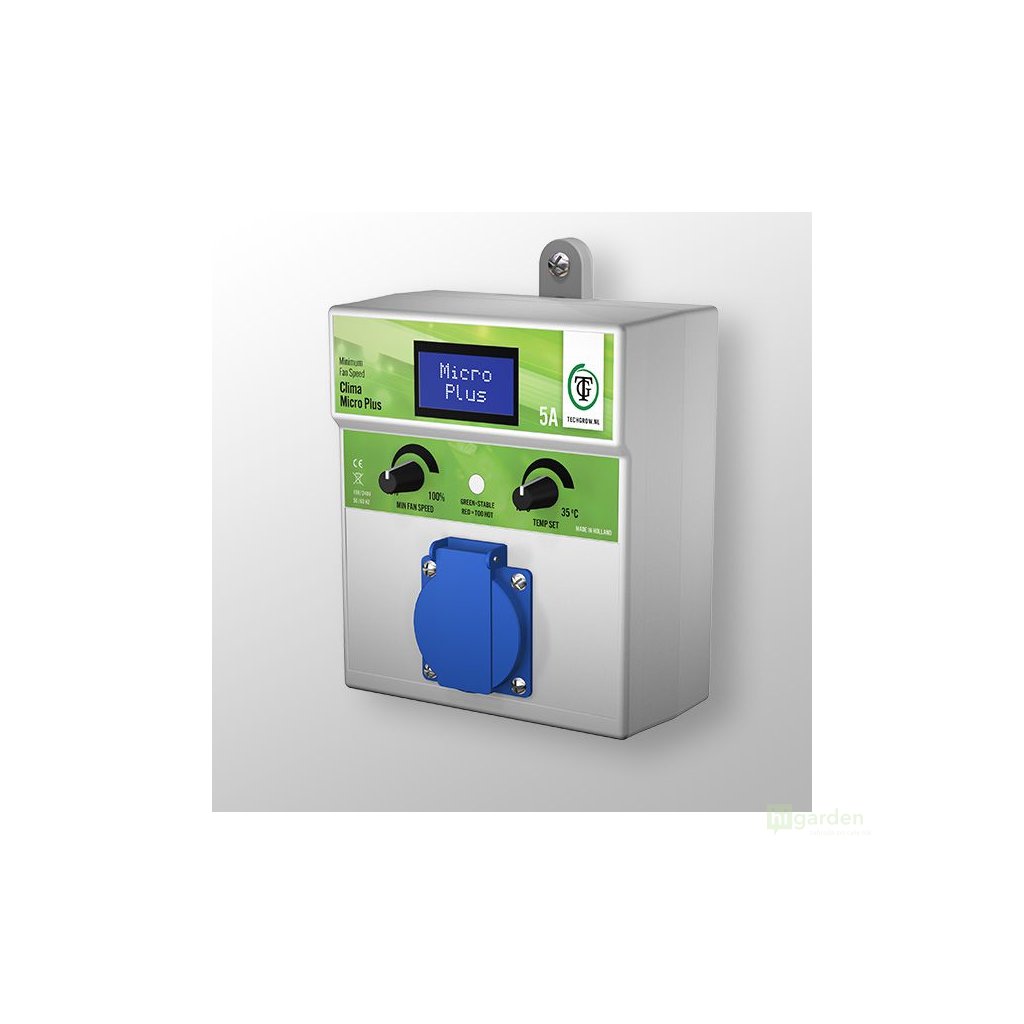

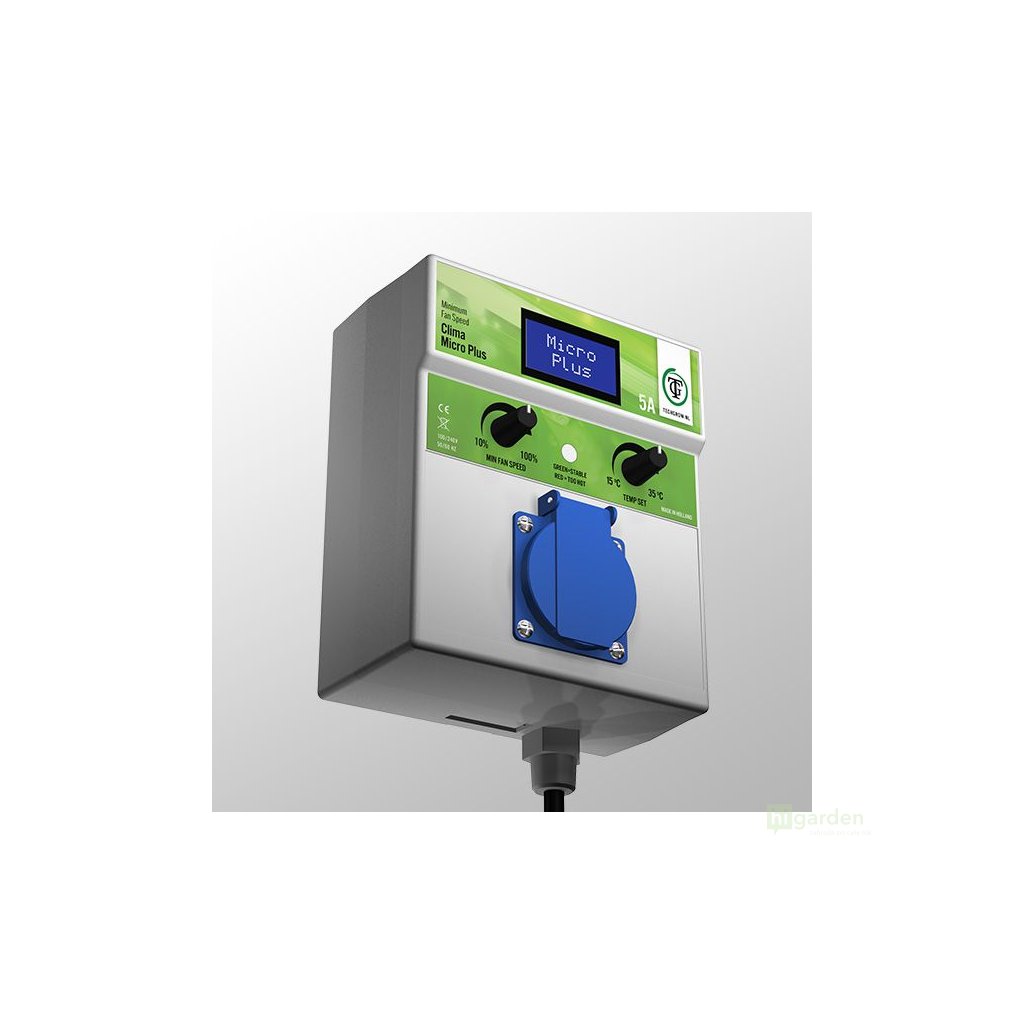

TechGrow Clima Micro Plus 5A controller (minimum speed)

Product detailed description

Unused goods without the original box.

TechGrow Clima Micro Plus 5A (minimum speed) is a controller with which you control the minimum fan speed to achieve or maintain the desired temperature level in your room. The controller is easy to operate with just two rotary knobs for setting the minimum speed (0-100%) and the desired room temperature (15°C-35°C). The controller also has the option to set the temperature hysteresis from 1°C to 5°C.

A clear display shows the current room temperature, the set temperature, fan speed, minimum and maximum measured temperature and hysteresis. The LED indicates whether the room has a stable climate or an excessively high temperature.

Key features:
- the controller can measure and display the current temperature value of connected sensors and record and display minimum and maximum values
- controls the minimum fan speed to achieve or maintain the desired temperature
- LED indicates stable climate or high temperature
- minimum fan speed and set temperature are saved in the event of a power failure
- temperature setting range - 15°C - 35°C
- hysteresis setting range - 1°C - 5°C
- minimum fan speed setting range - 10-100%
- display updates every second
- automatic display backlight switch-off after 60 seconds
- automatic detection of cable fault or poor connection with the sensor
- 2 UTP ports
- available in 5A version
- easy fuse replacement (including spare fuse)
- minimum required sensor - TechGrow Temperature Probe Sensor

Sensors are not included.

Compatible sensors:
- TechGrow Temperature Probe Sensor
- TechGrow Temperature and Humidity Sensor

Parameters and functions:
- controls - fan and temperature
- display
- characters on display - 2x8
- temperature range - 15°C - 35°C
- minimum fan speed setting range - 10-100%
- temperature hysteresis range - 1°C - 5°C
- power supply - 100-240V
- internal use - 3W
- fuse - 5A
- triac - 12A
- power cable - 3x1.5mm
- cable length - 1.7m

Dimensions and weight:
- product dimensions - 13x18x7cm
- product weight - 934g
- package dimensions - 25x15x14cm
- package weight - 1180g

Package contents:
- controller
- mounting kit
- spare fuse
- user manual
