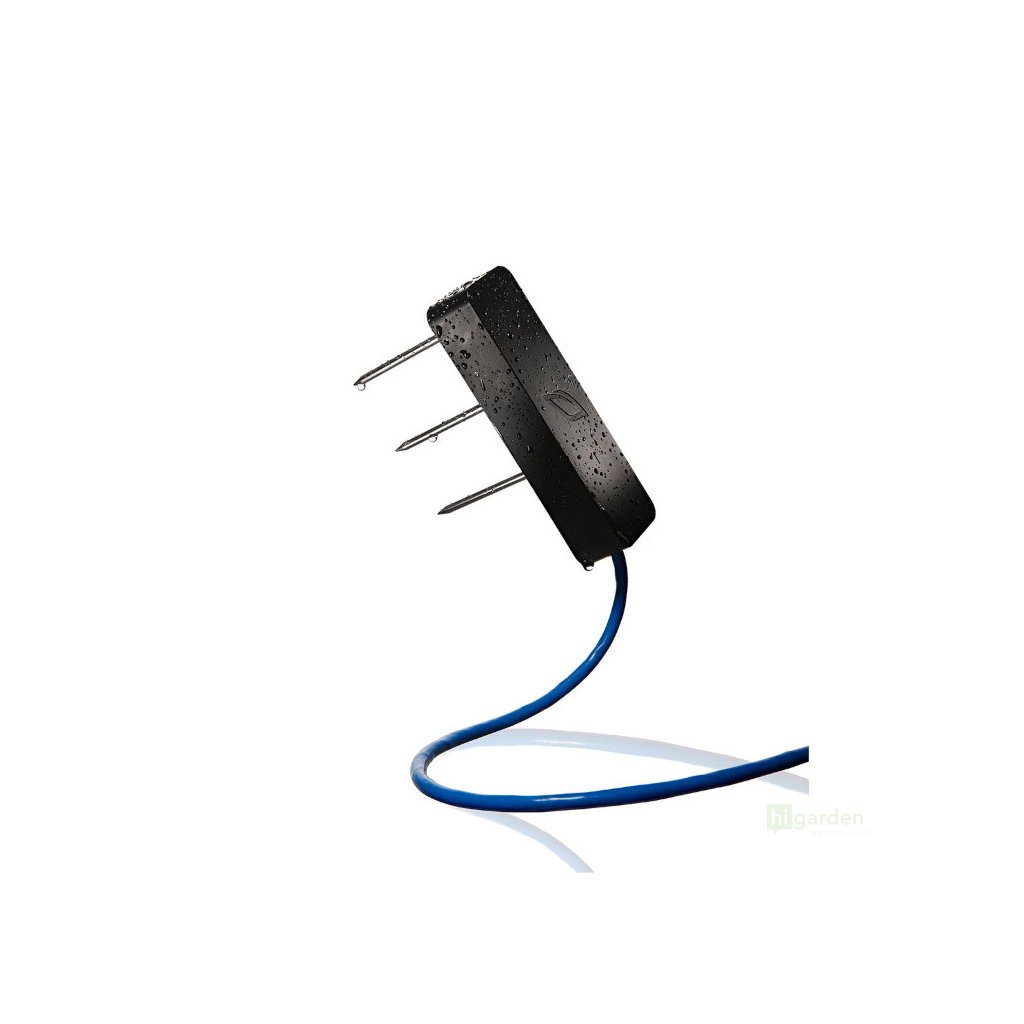

Growlink Terralink Sensor Canopy Link with M8 cable, 2 m

Product detailed description

The Teralink soil moisture sensor includes a 6 ft (2 metre) cable with an M8 connector, designed for quick installation and easy maintenance. Need more flexibility? Add the optional 5 metre extension cable for greater reach - ideal for larger growing spaces or dynamic setups. Built on advanced capacitive technology, the Teralink sensor provides reliable and accurate soil moisture data to help optimise irrigation and maximise yields. Whether you are moving the sensor, replacing it or simply cleaning it, the built-in connector makes it easy - no rewiring required. With the Terralink soil moisture sensor, you can ensure your plants receive the right amount of water at the right time, reducing waste and maximising yield.

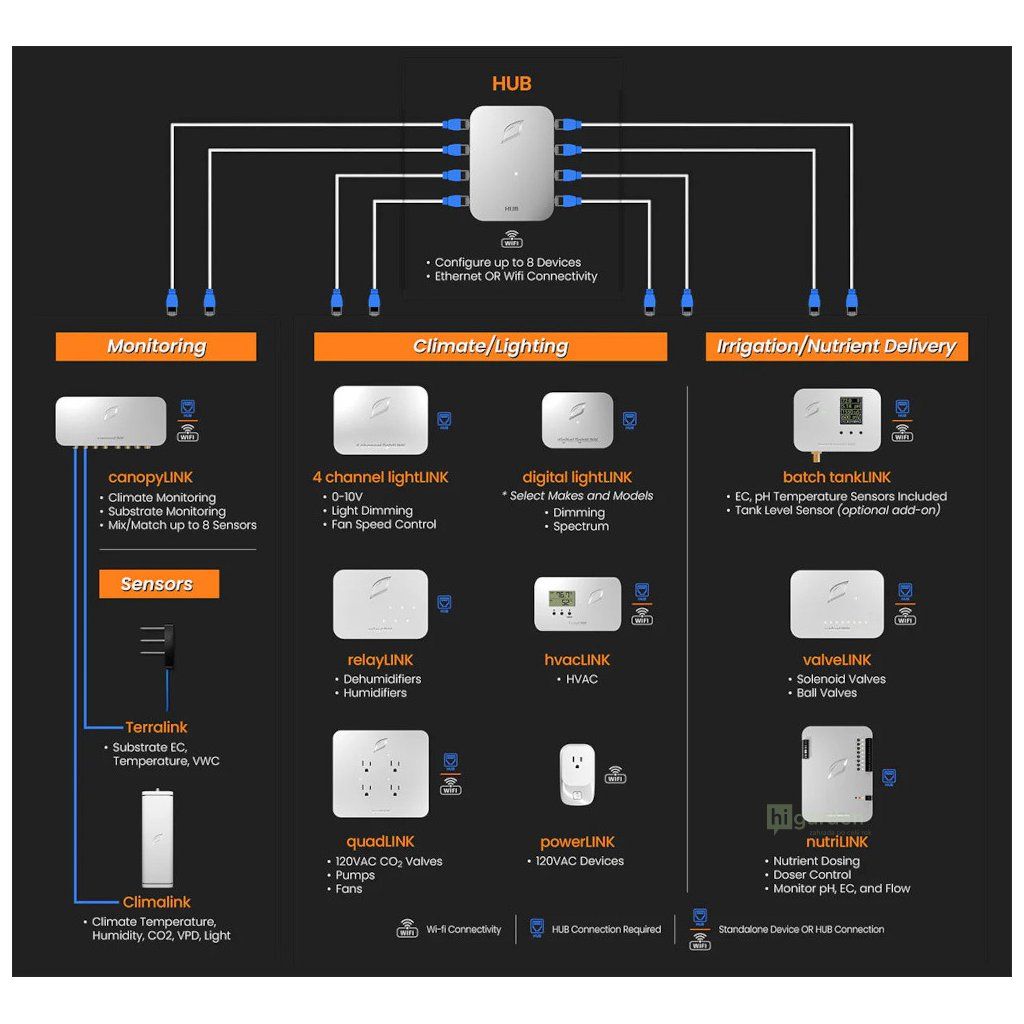

Compatible with: canopyLINK

Technical parameters

Communication interface:
- SDI-12, V1.3

Power supply:
- 3.6–16 V DC

Energy consumption:
- Idle current: 30 uA
- Measuring current: 10 mA at 150 ms measurement

Substrate moisture measurement

Apparent dielectric permittivity (?):

Range:
1–81 (air–water)

Resolution:
1.00–40.00: ±0.1
40.00–81.00: ±0.5

Accuracy:
1.00–40.00: ±2 %
40.00–81.00: ±5 %

Water content in substrate (VWC):
- Range: 0 % – 100 % (air–water)

EC measurement (conductivity):
- Range: 0–23 dS/m
- Resolution: 0–7 dS/m: 0.01 dS/m / 7–23 dS/m: 0.05 dS/m
- Accuracy: 0–7 dS/m: ±5 % / 7–23 dS/m: ±15 %
- EC temperature compensation: 0–50 °C

Temperature measurement:
- Range: -40 to 80 °C
- Resolution: 0.1 °C
- Accuracy: ±0.5 °C

Ingress protection:
- IP68

Operating temperature:
- -40 to 85 °C

Sensor construction:
- Probes: stainless steel
- Sensor potting: epoxy resin

Installation:
- Surface or buried installation
- Cable length: 6 ft (approx. 1.8 metres)
- Dimensions: 88 × 71 × 26 mm

Package contents:
- 1 × Terralink sensor for canopyLINK (M8 connector)
