Growlink LINKS Irrigation Bundle Set

Product detailed description

Growlink LINKS Irrigation Bundle: Precise irrigation and monitoring for your growing system

Move from manual work to precise, data-driven growing. Growlink LINKS Irrigation Bundle is a comprehensive set of components that expands your system with automated irrigation and detailed monitoring of key environmental parameters. Gain absolute control over the growing cycle and achieve higher efficiency, healthier plants and consistent results.

IMPORTANT NOTICE: For full functionality of this set, the LINKS Hub control unit is required. It is sold separately and is NOT part of this package. The set serves as an extension for an existing or newly built Growlink system.

Package contents

This set contains everything needed to implement advanced irrigation and climate control:

• 1x valveLINK – wireless valve controller
• 1x canopyLINK – sensor hub
• 1x Growlink Climalink with CO2 sensor – climate sensor (temperature, humidity and CO2)
• 2x Terralink – substrate sensor (VWC, EC, temperature)

Key features and benefits

After connecting to the LINKS Hub control unit, you get a system with exceptional capabilities:

• Complete automation: Fully automated irrigation and climate control based on real-time data.
• Crop Steering technology: Use advanced cultivation techniques to maximise the yield and quality of your crop.
• Wireless freedom: The components communicate wirelessly at 915 MHz with long range, eliminating complicated cabling.
• Remote access and notifications: Monitor and control your growing space from anywhere via the intuitive Growlink mobile app (iOS/Android).
• Modular system: Easily expand and adapt the system to your growing needs.
• Extreme durability: The components are designed for demanding growing environments and are resistant to moisture and dust.

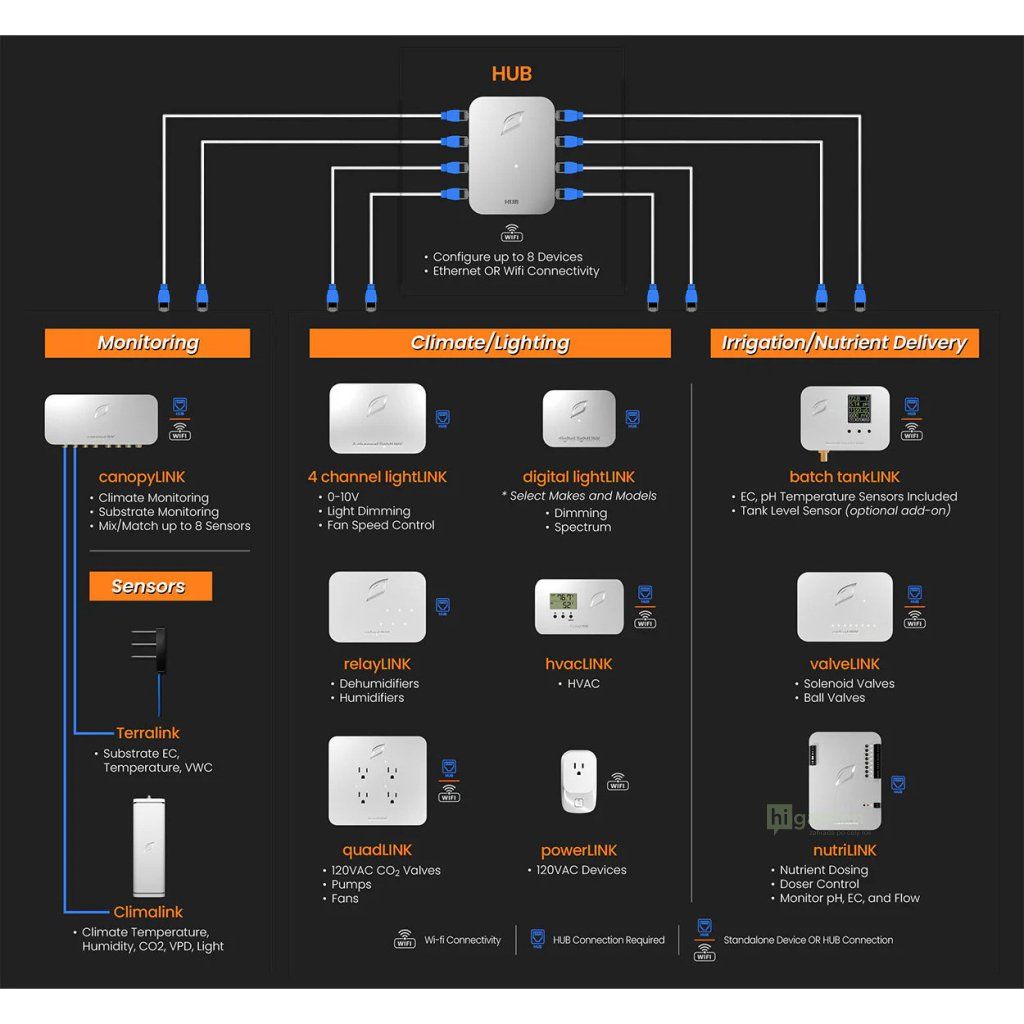

How does it work?

The principle is brilliantly simple. The Terralink sensors placed directly in the growing medium and the Climalink sensor in the plant canopy area collect key data. This information is sent wirelessly to the central LINKS Hub control unit (not included in the package).

Based on the set rules and real-time data, the Hub then gives instructions to the valveLINK controller, which automatically switches the connected irrigation valves. This gives you the certainty that your plants receive exactly what they need, and exactly when they need it.

Detailed component description

valveLINK: The heart of your automated irrigation. This wireless controller can independently switch up to 8 standard irrigation valves (24VAC). It is protected by a durable NEMA 4X certified housing, so it will not be intimidated by harsh conditions. It allows manual activation, time schedules and fully automated cycles controlled by sensor data.

Terralink (2 pcs): A top-class substrate sensor that gives you a perfect overview of what is happening in the root zone. In real time, it measures volumetric water content (VWC), electrical conductivity (EC) and substrate temperature. Thanks to TDR technology and a durable IP68-rated design, it provides highly accurate data in soil, coco and rockwool.

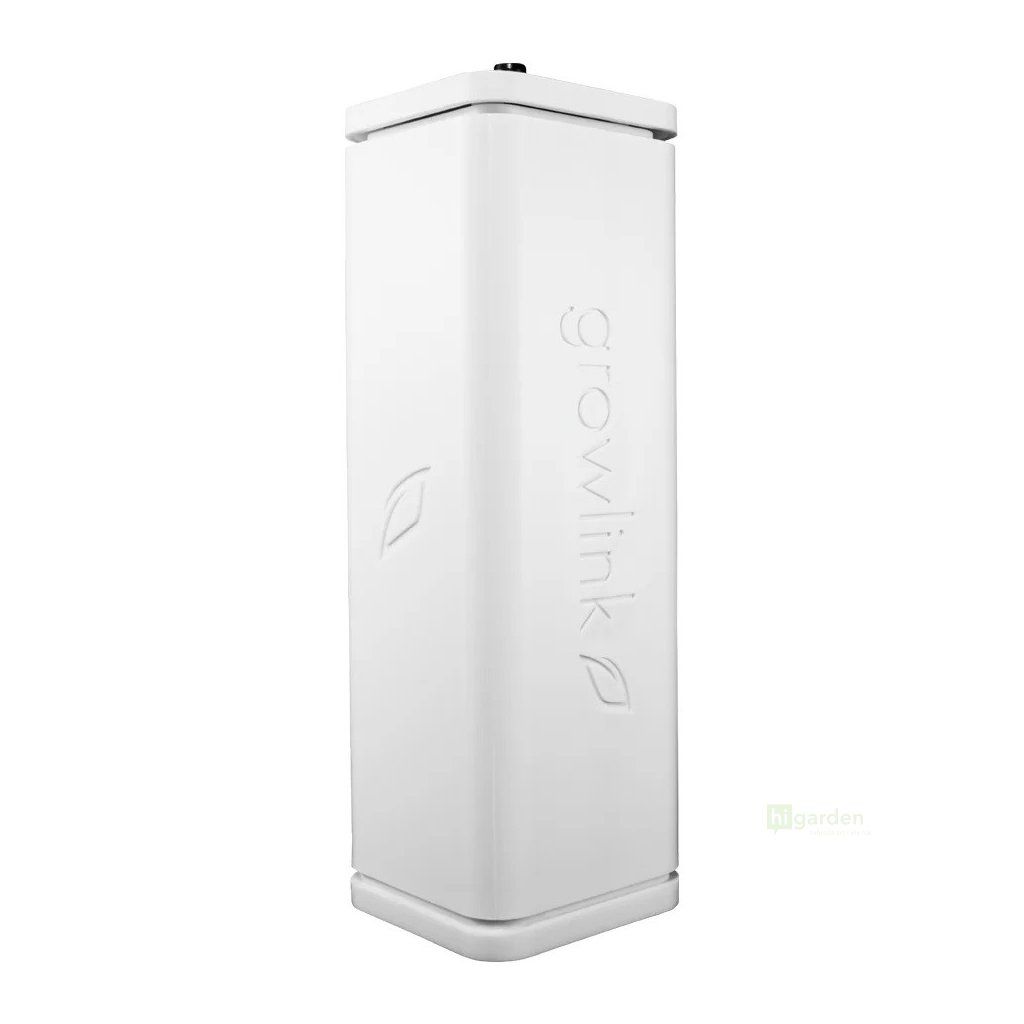

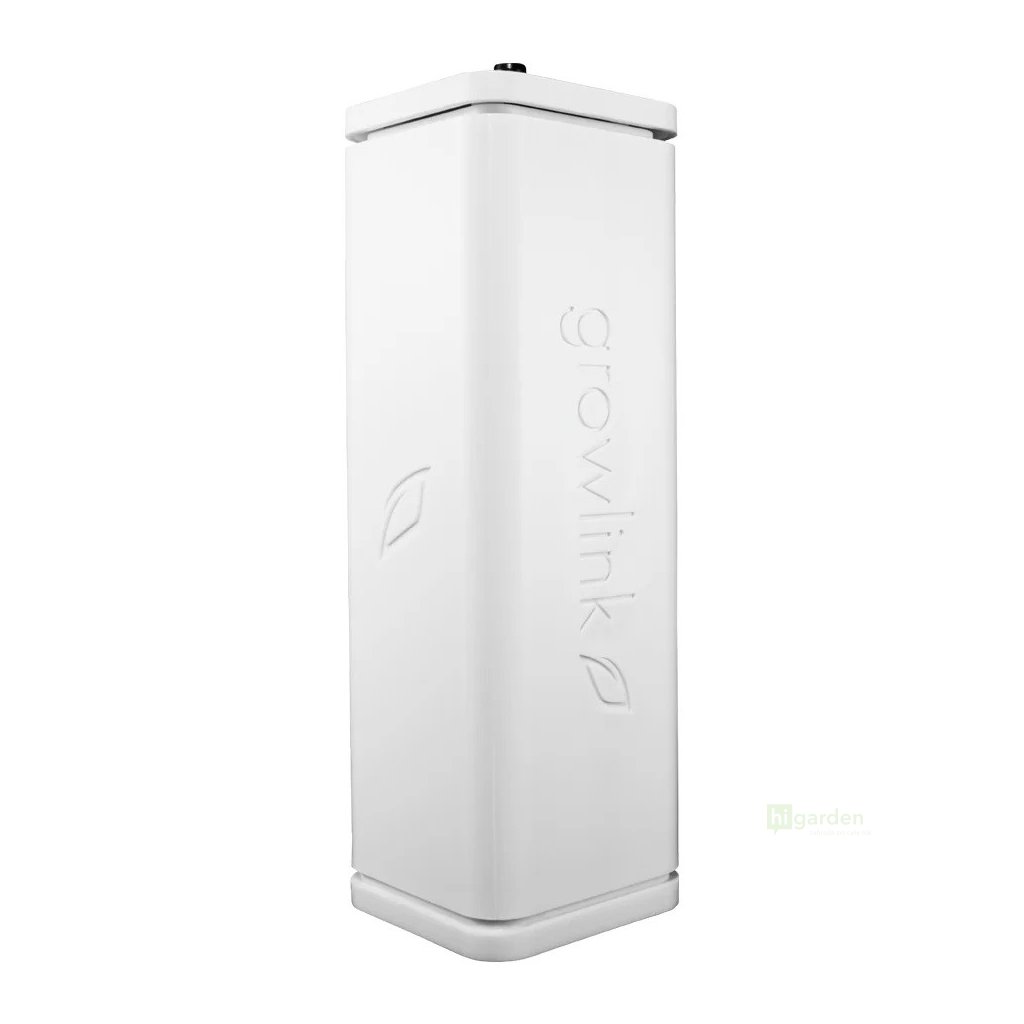

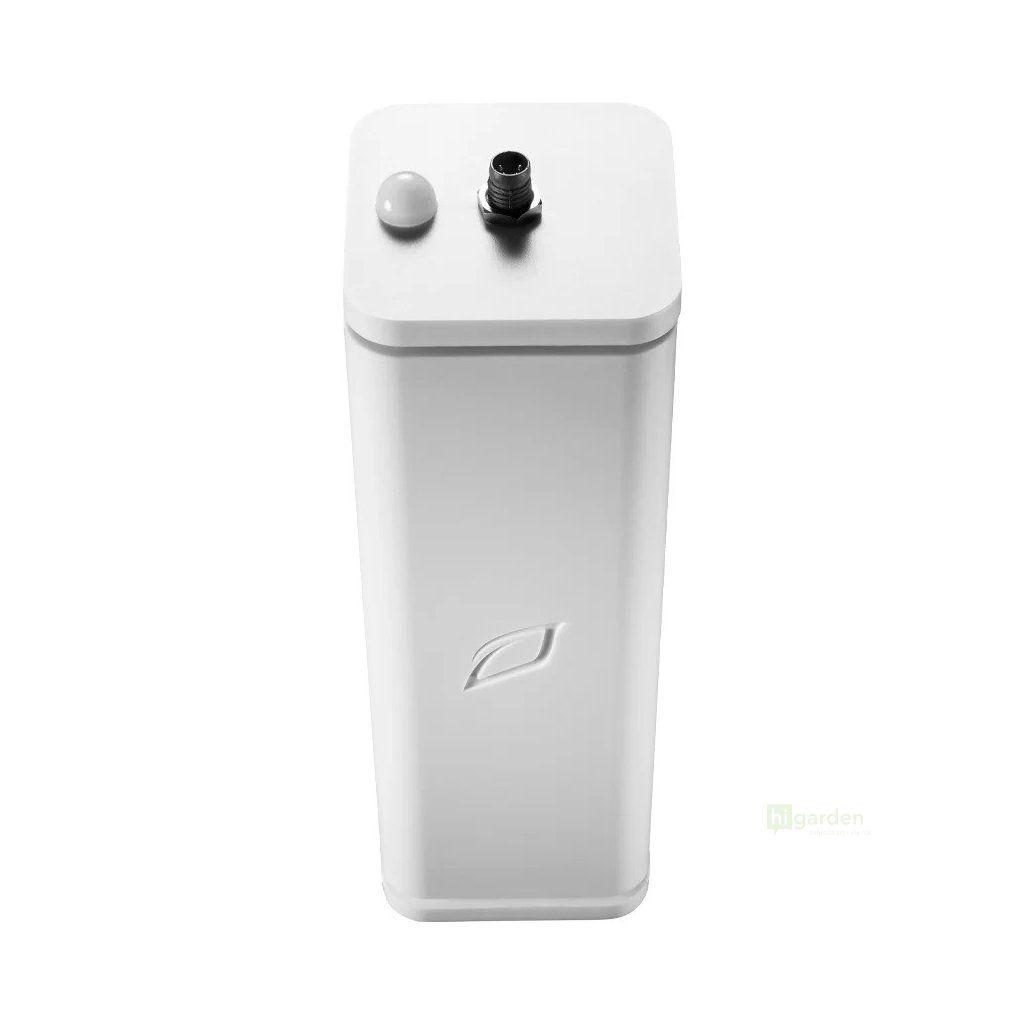

Climalink: A compact yet accurate climate sensor that monitors air temperature and relative humidity. From these values, the system automatically calculates vapour pressure deficit (VPD), which is a key parameter for optimising transpiration and the health of annual plants such as tomatoes, chilli peppers or herbs.

canopyLINK: A practical hub that serves as a central point for connecting Climalink and Terralink sensors. It significantly simplifies cable organisation and keeps your growing space tidy.

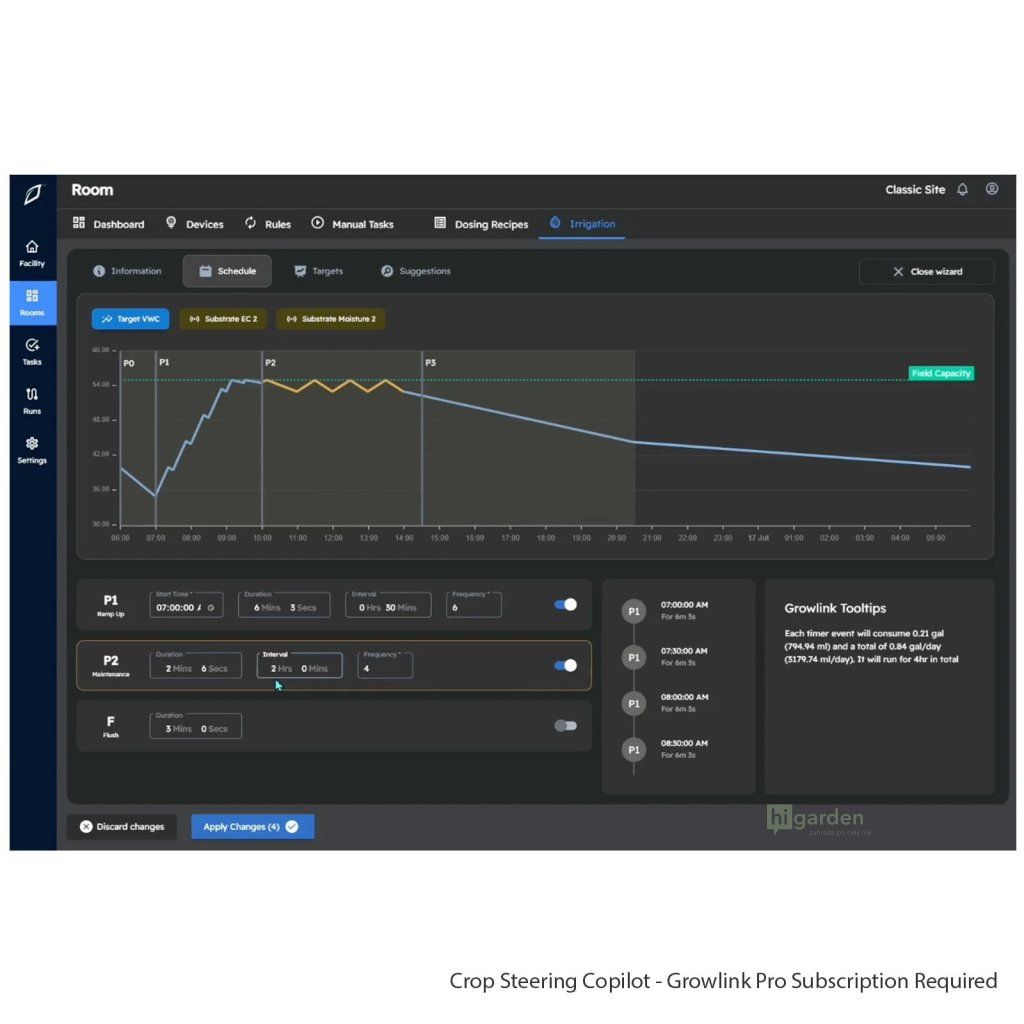

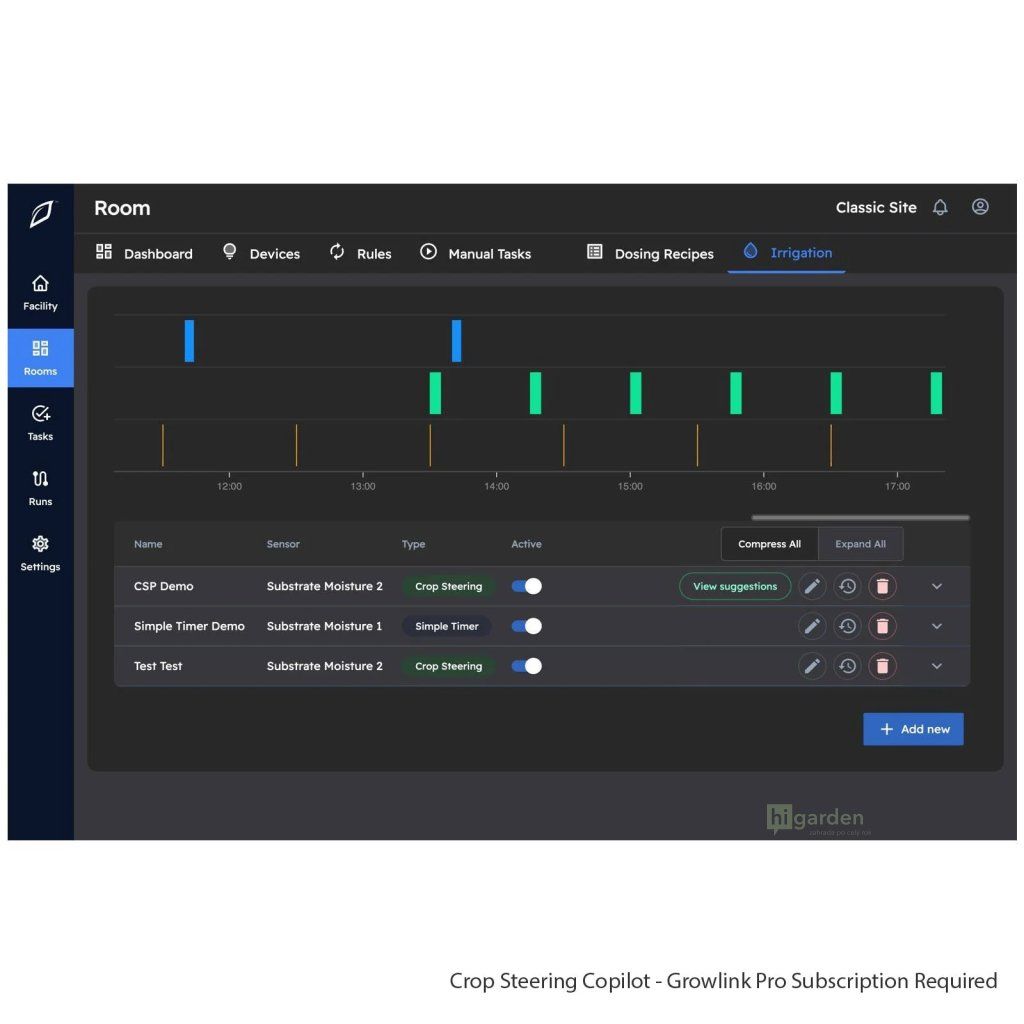

What is Crop Steering?

Crop Steering is an advanced cultivation method that uses precise data to target the plant through different stages of its development. By manipulating factors such as the water content in the substrate (VWC) and its electrical conductivity (EC), you can direct the plant either towards vegetative growth (leaf and stem formation) or towards generative growth (flower and fruit formation). This system gives you the tools to use this technique effectively.

Who is the set for?

This set is the ideal choice for growers who already own the Growlink LINKS Hub control unit and want to expand their system with precise irrigation control. It is also perfect for new users who plan to build a complete automated system and are aware of the need to purchase the LINKS Hub control unit to put it into operation.

Parameters

• Terralink sensor:
• Measured values: Volumetric water content (VWC), EC, temperature
• VWC measurement technology: TDR (Time Domain Reflectometry)
• VWC measurement range: 0–100 % (accuracy ±2 %)
• EC measurement range: 0–10 dS/m (accuracy ±3 %)
• Temperature measurement range: -40 °C to +60 °C (accuracy ±0.5 °C)
• Protection rating: IP68
• Cable length: 5 metres

• valveLINK controller:
• Number of zones: 8 independent
• Compatibility: Standard 24VAC irrigation valves
• Power supply: Requires a separate 24VAC transformer (not included in the package)
• Protection rating: NEMA 4X (weather-resistant)
• Connectivity: Wireless, 915 MHz
