Lumatek Digital Panel - Controller for HID

Product detailed description

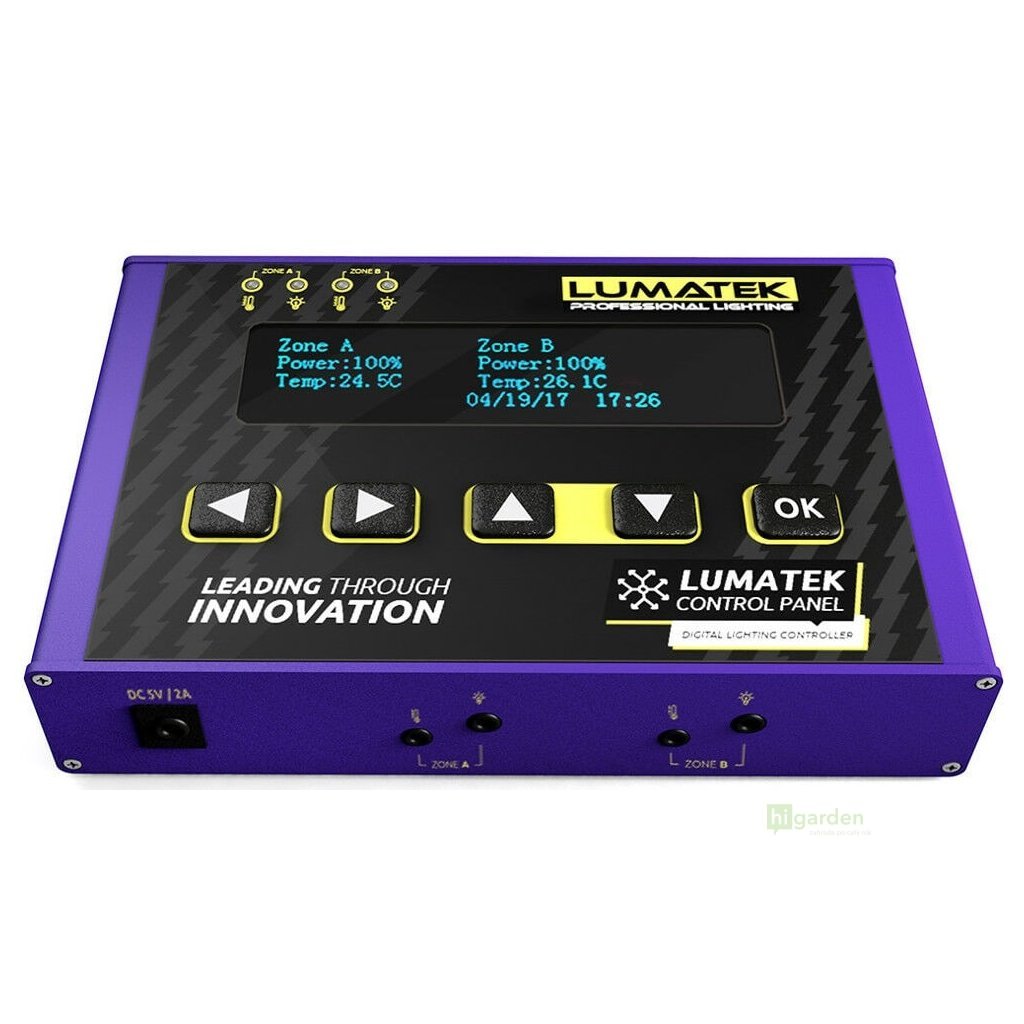

Lumatek Digital Panel - controller for HID ballasts

Lumatek Digital Panel (SKU LUMM0001) is a digital control unit for Lumatek Controllable HID ballasts - CMH, metal halide (MH) and sodium (HPS) lighting. From one panel you control the power, timing and safety modes of the entire grow room. It is not intended for LED control.

What the controller can do

• Digital light timing (photoperiod)
• Power regulation of connected ballasts, dimming 10-115 %
• Simulation of sunrise and sunset (sunrise/sunset 0-30 min)
• Monitoring temperature in the grow room via temperature sensors
• Safety dimming or shut-off in case of overheating of the space

Parameters

• Type: digital control unit (controller) for HID
• Capacity: up to 400 ballasts (200 per channel, channels A and B)
• Dimming range: 10-115 %
• Sunrise / sunset: adjustable 0-30 min
• Power supply: 100-240V, 50/60 Hz
• Dimensions: 125x80x25 mm
• Compatibility: Lumatek Controllable ballasts - CMH 315W and 630W, HPS/MH 600W and 1000W
• Not for: LED lighting

Compatibility

Compatible:

• Lumatek digital ballasts (HID) - power and timing control

Incompatible:

• LED luminaires - for LED use Control Panel Plus 2.0 and LED Master Controller

Package contents

• 1x panel (Digital Panel)
• 1x power cable
• 2x temperature sensor cable
• 2x control cable with TRS connectors

Why the controller is worthwhile

The controller replaces manual adjustment of each ballast separately. The lights start up and switch off exactly according to the schedule, you can smoothly adjust the power in the range of 10-115 % according to the growth stage, and if the space overheats, the lighting panel automatically dims or switches off. Thanks to two channels and a capacity of up to 400 ballasts, you can control even a large grow room from one place - saving time and giving you peace of mind that the setup is running under supervision even in your absence. Pair Controllable Lumatek ballasts with the controller, for example Lumatek 315W CMH digital ballast.

Frequently asked questions

Which ballasts does the panel control and how many can it handle?
Lumatek Digital Panel controls Lumatek Controllable HID ballasts - CMH 315W and 630W and HPS/MH 600W and 1000W. It can handle up to 400 ballasts, 200 on each of the two channels (A and B). The ballast must have the Controllable function and the corresponding control input.

Can the panel control LED?
No. This Digital Panel is intended exclusively for HID ballasts. If you want to control HID and LED with one panel, choose the newer Digital Panel Controller PLUS 2.0 (HID+LED).

What does the safety and light function do?
The panel monitors the temperature in the grow room via temperature sensors and, if it rises excessively, it automatically dims or switches off the lighting to protect both plants and equipment. At the same time, it handles light timing, smooth dimming 10-115 % and sunrise and sunset simulation (0-30 min) for a smooth transition between day phases.
