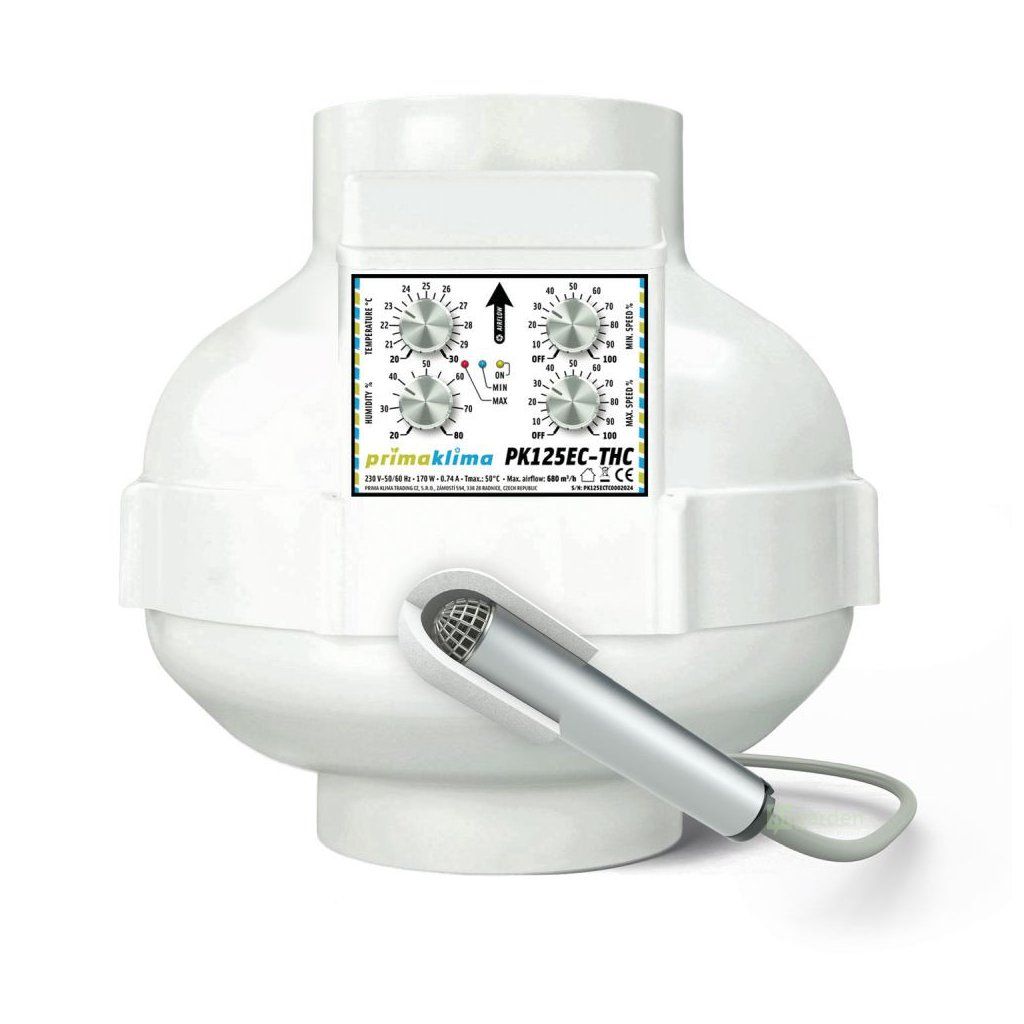

Prima Klima fan EC-THC 125 mm - 680 m3/h, EC motor and speed control according to temperature and humidity
Code: PK125EC-THCProduct detailed description
The PK125EC-THC ducted fan is equipped with a high quality ebm-papst EC motor with very low power consumption. Thanks to the integrated control, it allows automatic control according to temperature and humidity.
The fan is designed for efficient and quiet operation in ventilation systems. The aerodynamically optimised shape and robust construction made of flame retardant polyamide ensure reliable performance and long life.
Features:
- Temperature, humidity and speed control
- Impeller with reverse curved blades
- Low energy consumption
- Low noise level
- Aerodynamically optimised shape
- Durable and impact-resistant design made of flame-retardant polyamide (nylon)
- Integrated control and connection system
Technical specifications:
- Flange: 125 mm
- Max. air flow: 680 m³/h
- Power input: 0-170 W
- Voltage: 230 V, 50/60 Hz
- Current: 0.74 A
- Max. operating temperature: 50 °C
- Dimensions: 244 × 244 mm
- Weight: 2.5 kg
Additional parameters
| Category: | Prima Klima Ventilators with an EC Engine |
|---|---|
| EAN: | 8594171433931 |
| Flange (mm): | 125 |
| Airflow (m3/h): | 680 |
