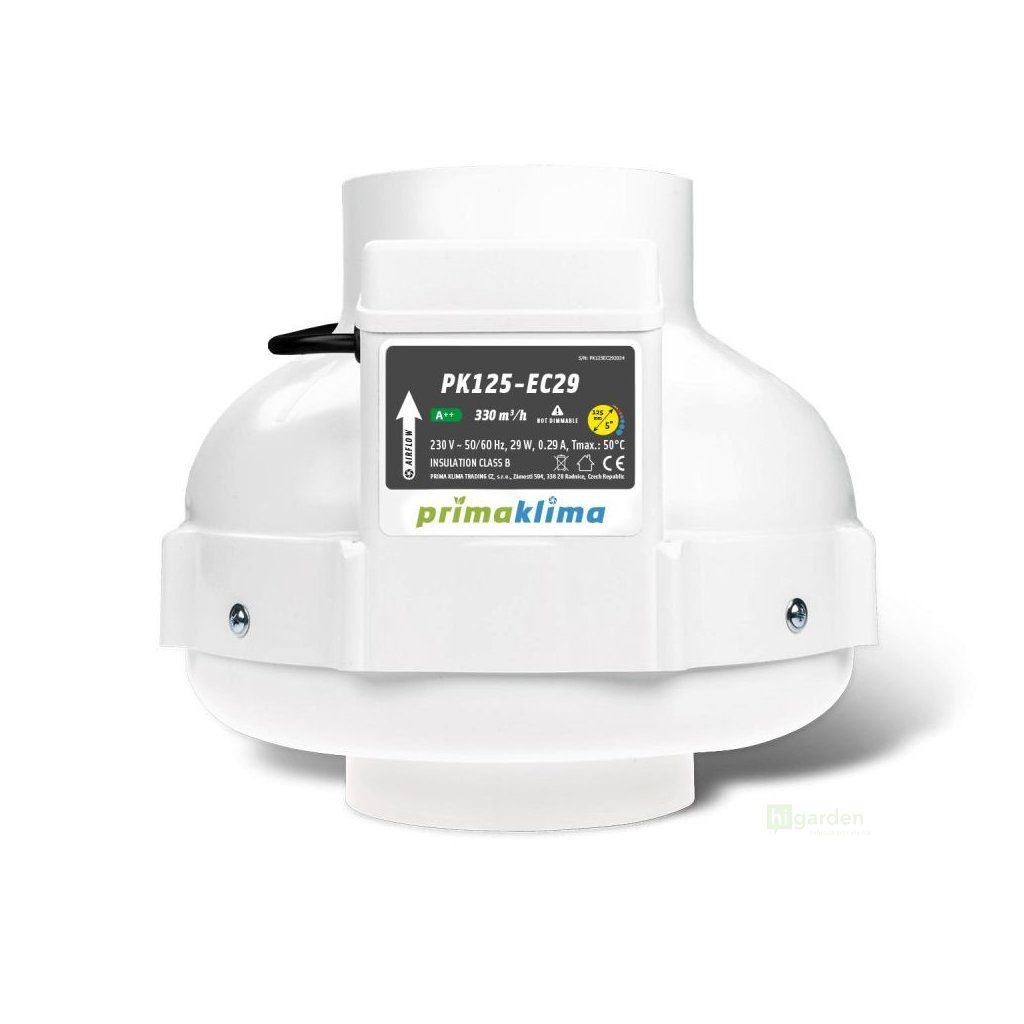

Prima Klima fan EC 125 mm - 330 m3/h, 1-speed
Code: PK125-EC29Product detailed description
The PK125-EC29 ducted fan is equipped with a high quality ebm-papst EC motor with low power consumption and quiet operation. It is suitable for efficient air extraction in ventilation systems.
The fan body is made of durable, impact-resistant and non-flammable polyamide (nylon). The aerodynamically optimised shape contributes to good performance and reliable operation.
- Single speed fan with premium ebm-papst EC motor
- Aerodynamically optimised shape
- Durable and shockproof design
- Powerful and quiet operation
- No regulation
Technical specifications:
- Flange: 125 mm
- Max. air flow: 330 m³/h
- Power input: 29 W
- Voltage: 230 V, 50/60 Hz
- Current: 0.23 A
- Max. operating temperature: 50 °C
- Dimensions: 244 × 220 mm
- Weight: 2.4 kg
Additional parameters
| Category: | Prima Klima Ventilators with an EC Engine |
|---|---|
| Flange (mm): | 125 |
| Airflow (m3/h): | 330 |
