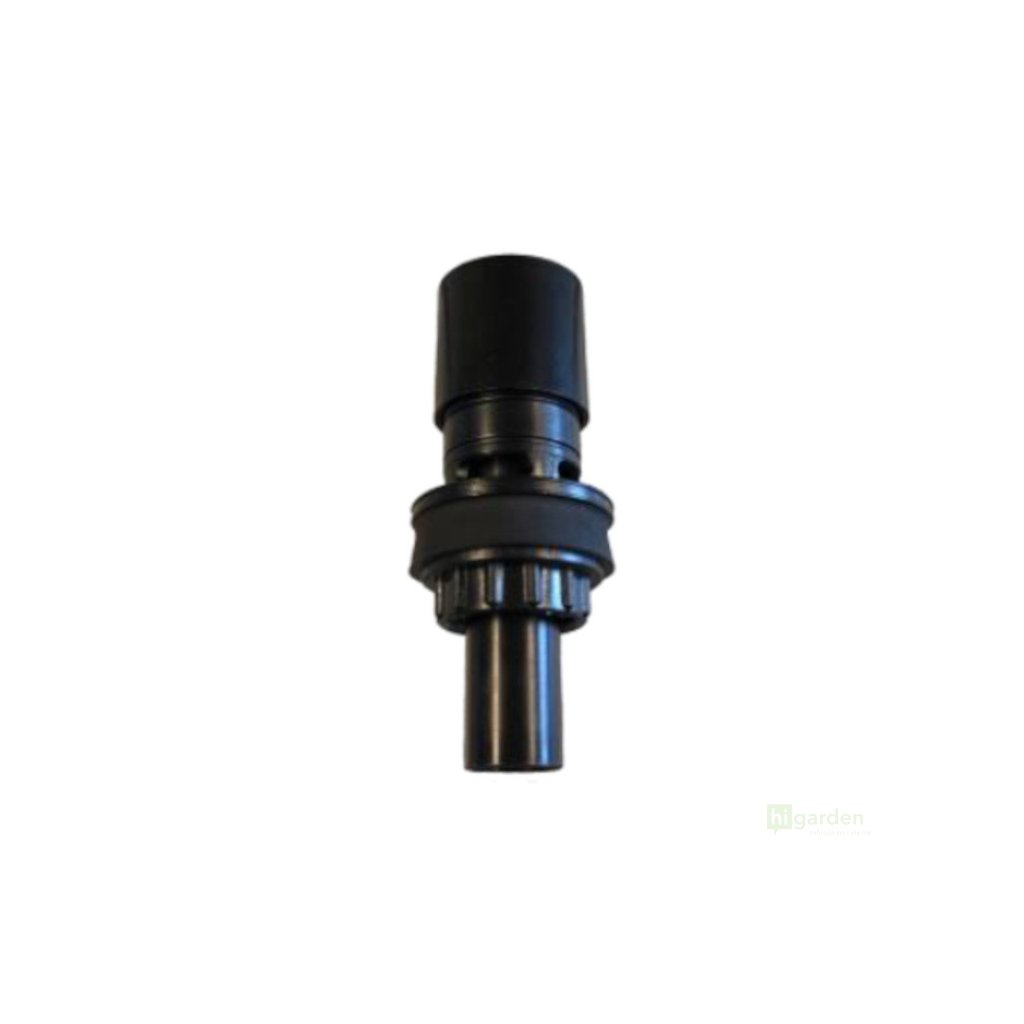

Ebb&Flow siphon valve with rubber seal 10 mm

The three-stage drain "siphon" valve with rubber seal and 10 mm reduction is designed for Ebb&Flow inflow and overflow baths.

The valve can be preset to drain the tub at three different water levels by simply adjusting the valve riser to the desired water level. When the desired water level is reached, it causes a so-called siphon effect. The valve will let the water drain until the bath is empty.

Features:
- If the moving part of the valve is completely removed, the valve will drain the water from the bath continuously.
- If the valve riser is set to the absolute top position, the water will remain in the bath.
- The filling capacity is controlled by the water supply pressure.

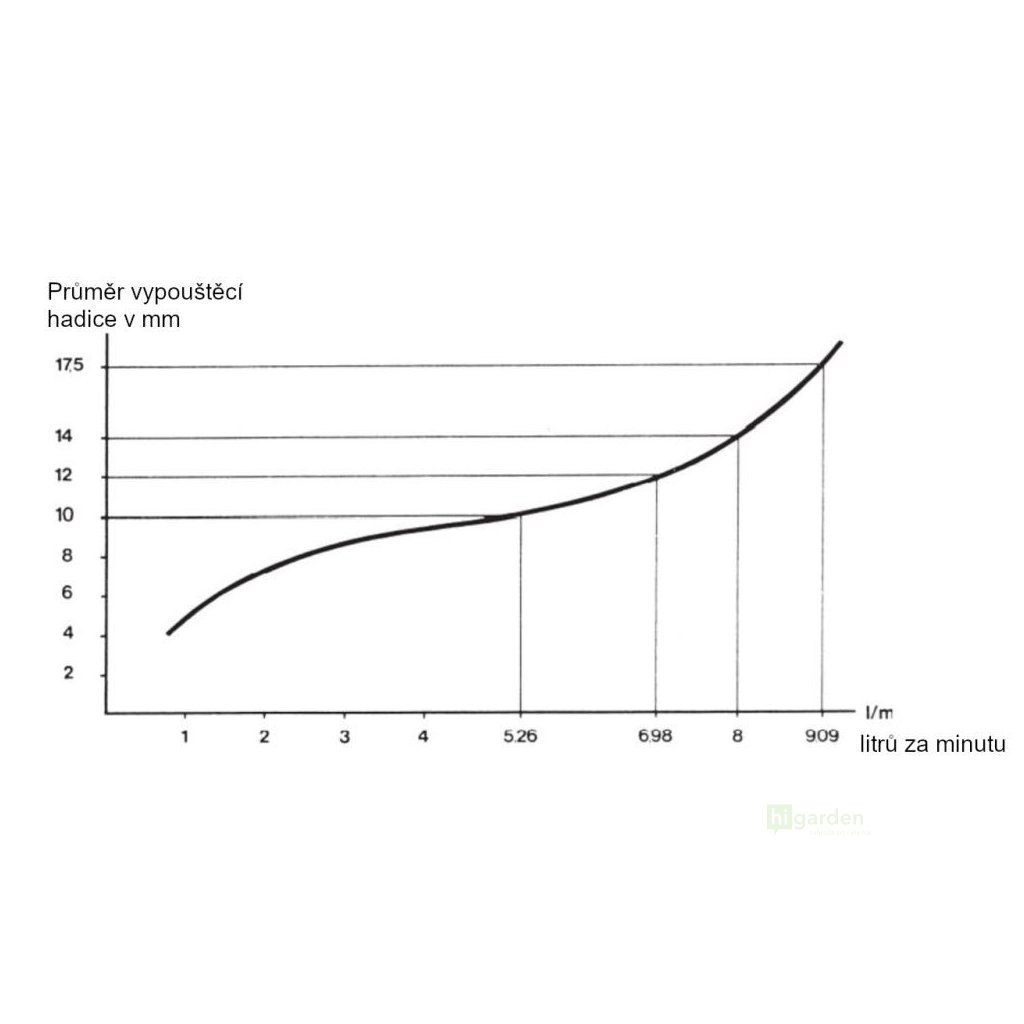

- The draining capacity depends on the inner diameter of the pressure reducing ring.

It is possible to install 1-3 siphon valves in the valve sump in Ebb&Flow Staal&Plast baths. The plastic strainers (cover grids) have an easily removable design that allows the siphon valve to be pushed through.

The drain valve for Ebb&Flow tubs is very durable and is designed to maintain its functionality for many years in harsh growing environments. The valve is very easy to remove for regular and easy cleaning.

Specifications:
- Outer diameter: 20 mm
- Inner diameter: 17.5 mm
- Reducer: 10 mm
