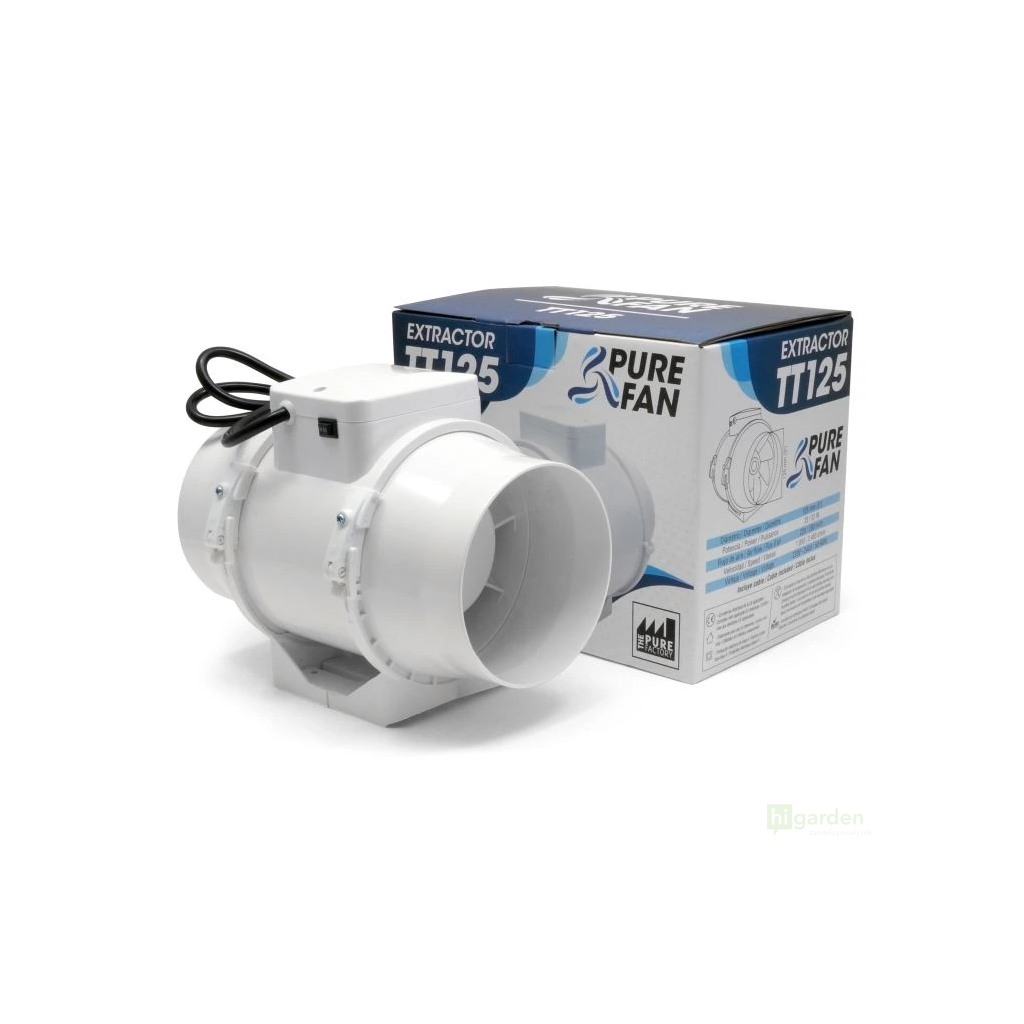

PF TT 125 Fan, 220/280 m³/h – Damaged Packaging

The fan has never been used and does not come with its original packaging.

PF TT 125 plastic duct fan, 220/280 m³/h. Housing made of durable ABS plastic. Lightweight and quiet during continuous operation.

Option to switch between 2 speeds. Cable included!

Motor:
The single-phase motor with ball bearings has two speeds that can be switched using a switch. The motor is equipped with a thermal fuse with automatic restart. IPX4 protection rating.

Installation:
The fan can be installed at any point in the duct system—we recommend horizontal installation. Additionally, multiple fans can be installed simultaneously to increase pressure or the capacity of the transported air.

Technical parameters:
- air flow: 220/280 m³/h
- power consumption (input): 23/37 W
- 1950/2455 rpm
- voltage: 230 V
- sound pressure level: 29/36 dB(A)
- compatible with 125 mm diameter round ducting
- weight: 1.4 kg
- protection rating: IP X4
- max. operating temperature: 60°C
- motor overheating protection with automatic restart

Why are TT plastic fans attractive and popular?
Affordable yet reliable, TT duct fans are designed for ventilation systems that operate at high pressure and require minimal noise levels. Their versatility allows them to be used in all small spaces that require frequent or continuous air exchange (offices, kitchens, bathrooms, greenhouses, workshops, or grow rooms).
