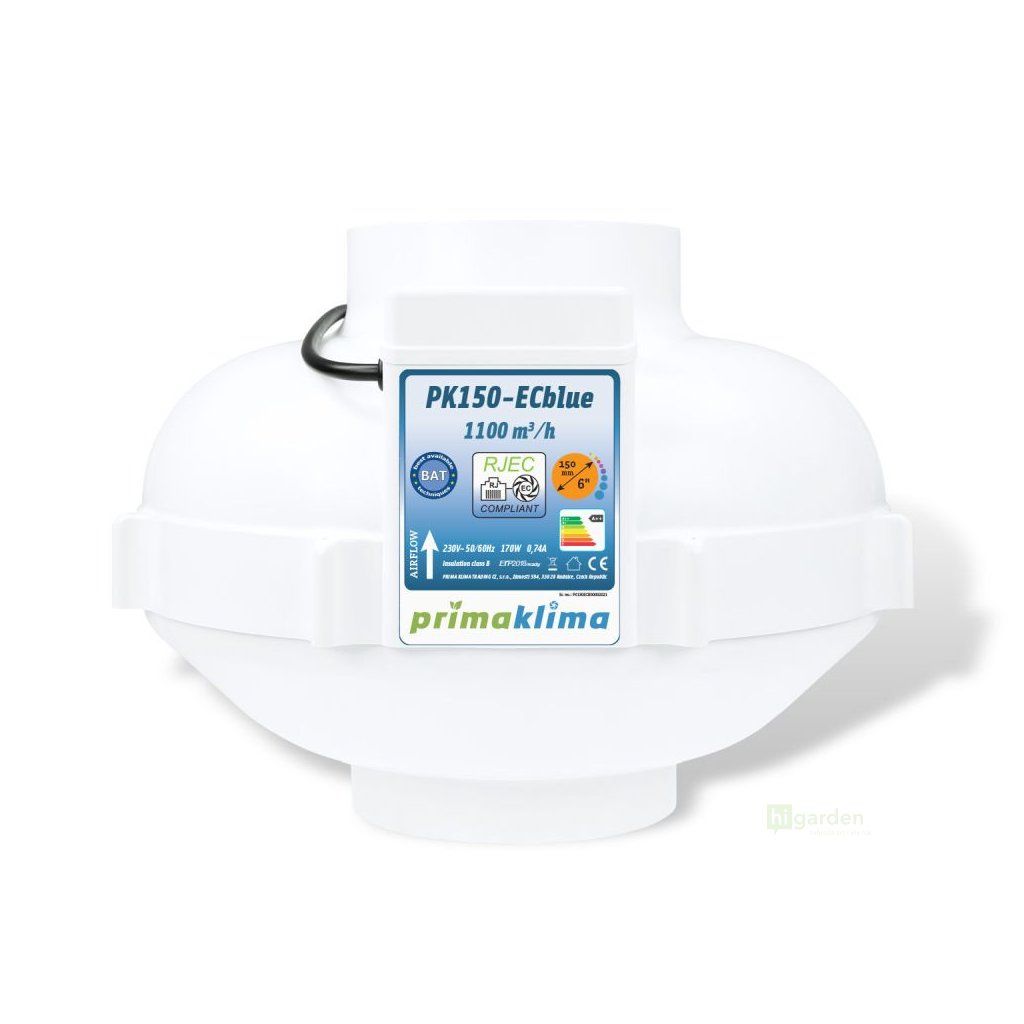

Prima Klima fan PK150-ECblue 150 mm, 1100 m3/h, EC motor

The fan with EC motorbm-papst, Prima Klima PK150-ECblue, is suitable for ventilation systems with a diameter of 150 mm. The Swiss motor guarantees standard performance and durability.

The fan with EC motorbm-papst,Prima Klima PK150-ECblue issuitable for ventilation systems with a diameter of 150mm.
The Swiss motor guarantees superior performance and durability.

Prima Klima duct fans with a high-quality EC motor are very quiet and at the same time very powerful and with adequate consumption.
The housing is made of durable and heat-resistant polyamide (nylon) plastic.
Optimal air flow is ensured by aerodynamically shaped blades. The fan is equipped with overheating protection and is highly impact resistant.

The advantage is also the low weight.100% efficient performance and for a long time will ensure in combination with Prima Klima odour filters. All Prima Klima radial fans are supplied with handles, cable and socket plug.

With the external switchPrimaKlima ECTC-1thepowercanbe regulated, otherwise the fan is only single speed.

It is equipped with an RJ45 connector.

Features and benefits:
- premium ebm-papst motor
- Temperature and speed adjustment via the Prima Klima ECTC-1M digital controller.

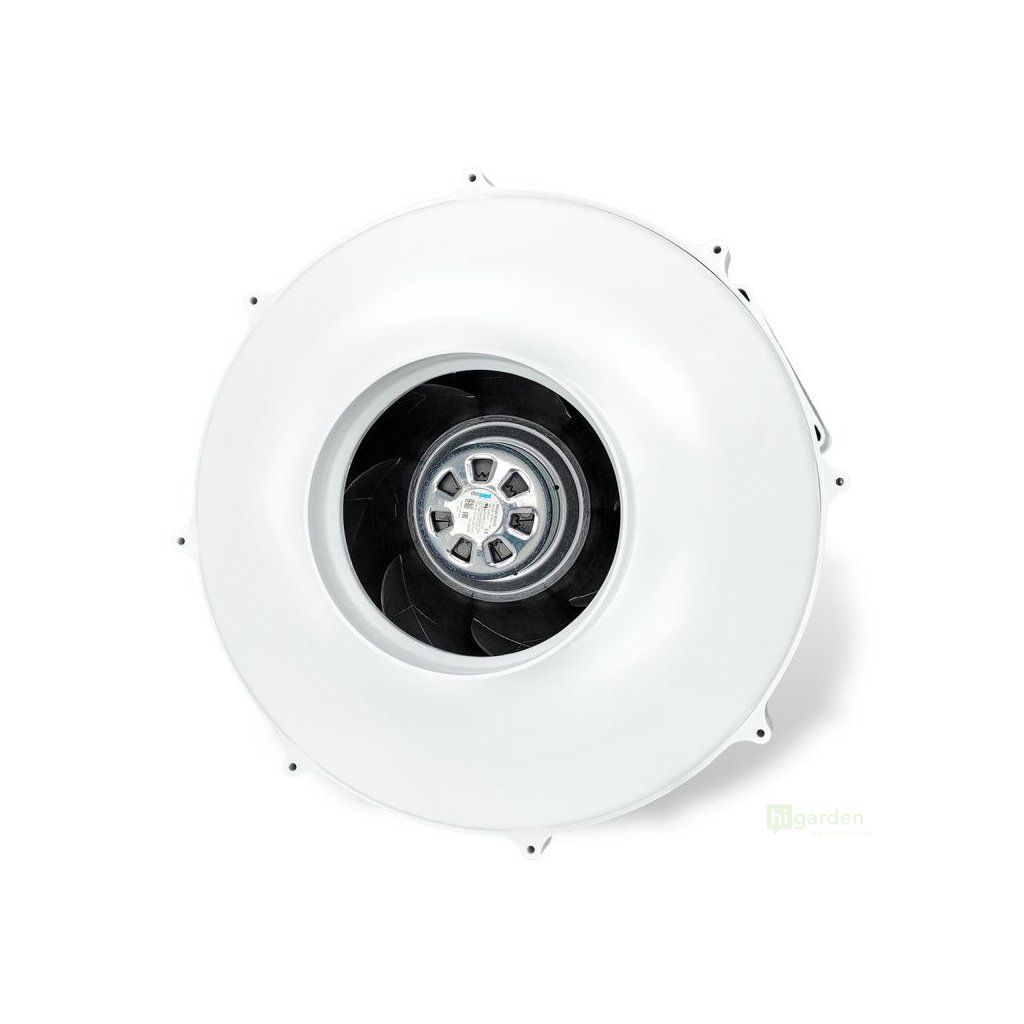

- impeller with backward curved blades
- low energy consumption
- low noise
- aerodynamically optimised shape
- impact-resistant and durable housing made of flame-retardant polyamide (nylon)
- connection and control system integrated into the housing

Specifications:
- flange:150mm
- max airflow: 1100m3/h
- power: 0-170W
- AC Input: 230V 50/60Hz 0.74A
- max temperature: 50°C
- dimensions: 338x243mm (w/v)
- weight: 4.22kg

Recommended accessories -ECTC-1M-Digitalcontroller.
