Trolmaster 240V Timer Program Device Station (DSP-2E) DE

The picture is illustrative.

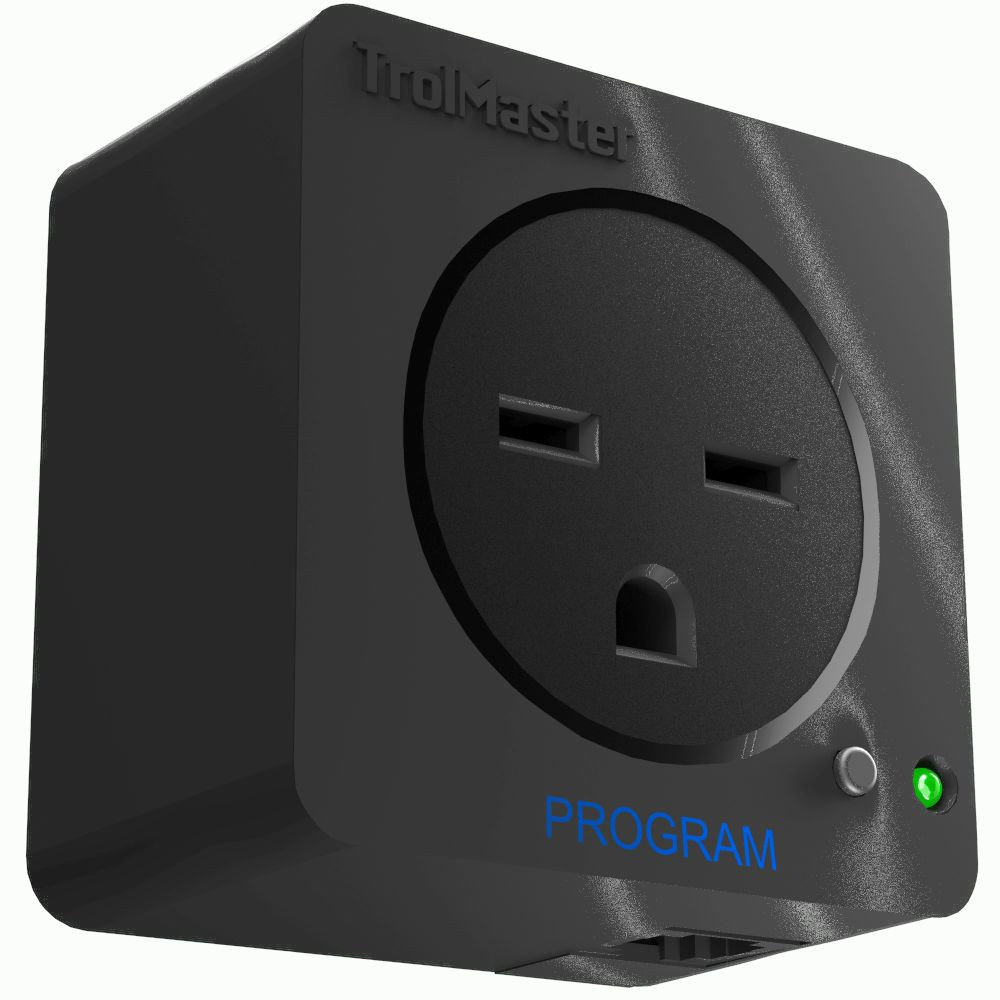

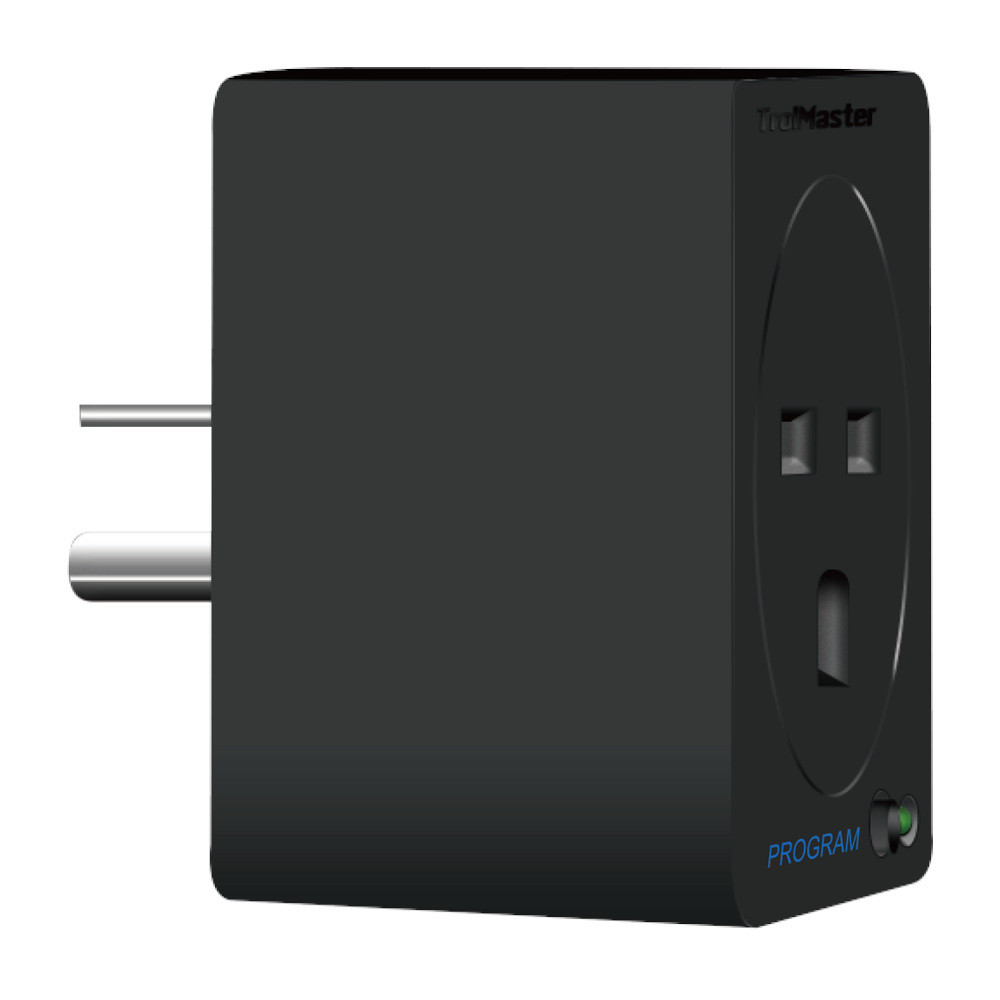

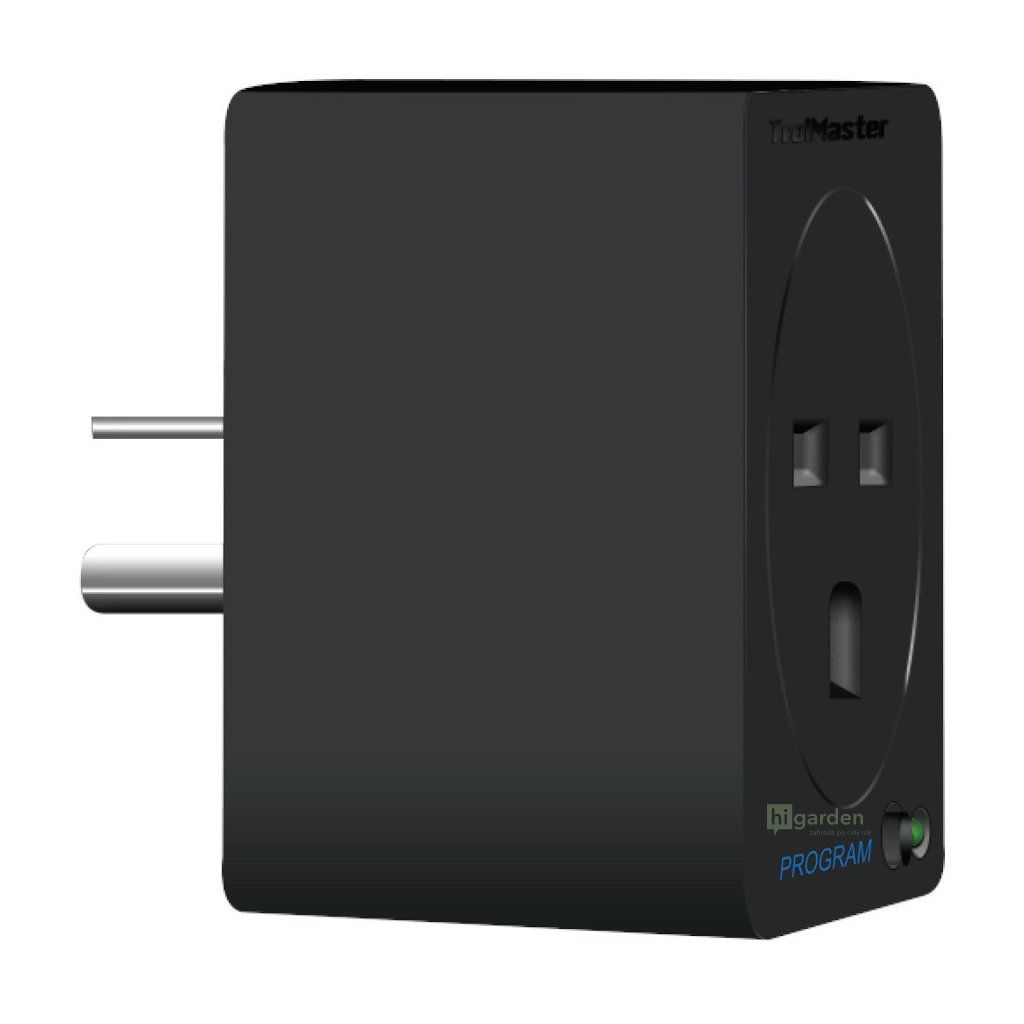

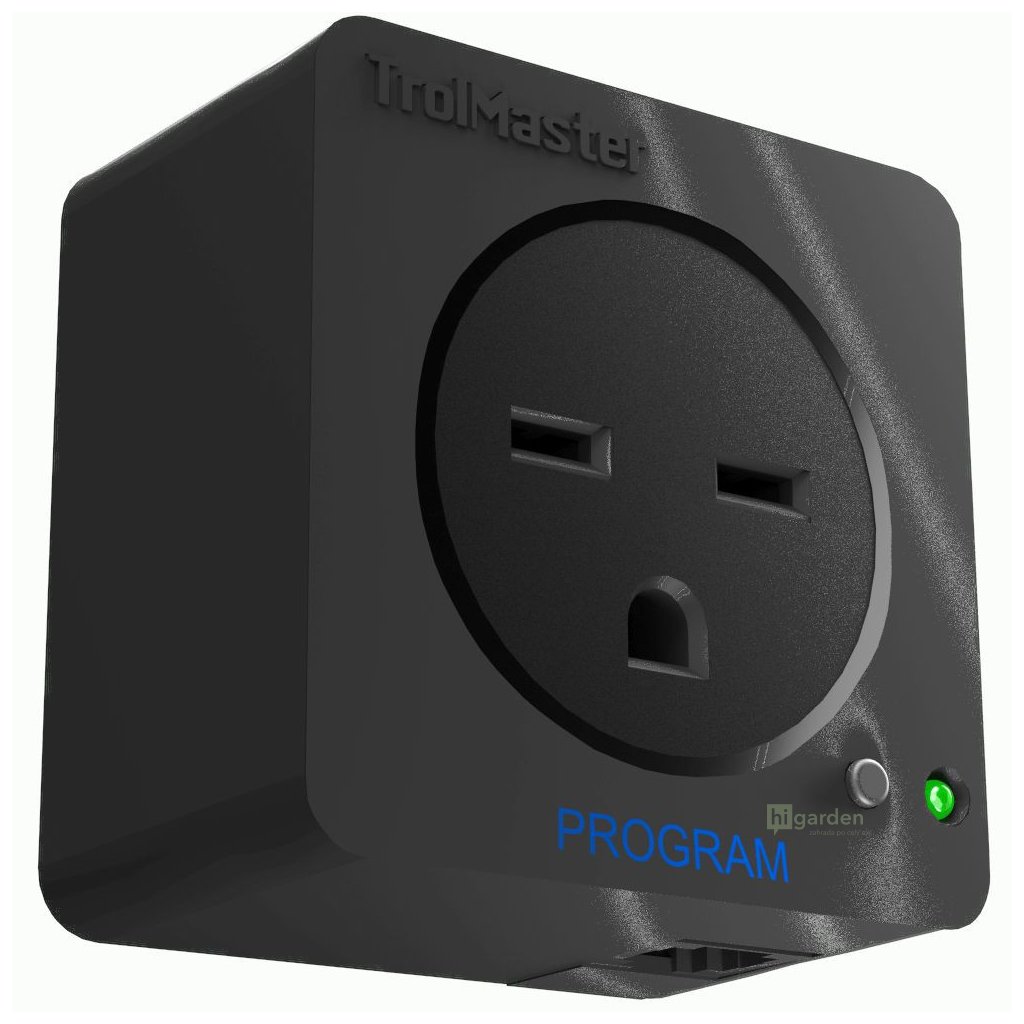

The TrolMaster DSP-2 programming device module (timer module) functions as a multifunction timer. The DSP-1 module allows the user to easily connect any device to the Hydro-x system that needs to be controlled by the TIME function. The DSP-2 module allows any device to be controlled according to world standard voltage (100-240 VAC, 50/60 Hz), up to 10 amps.

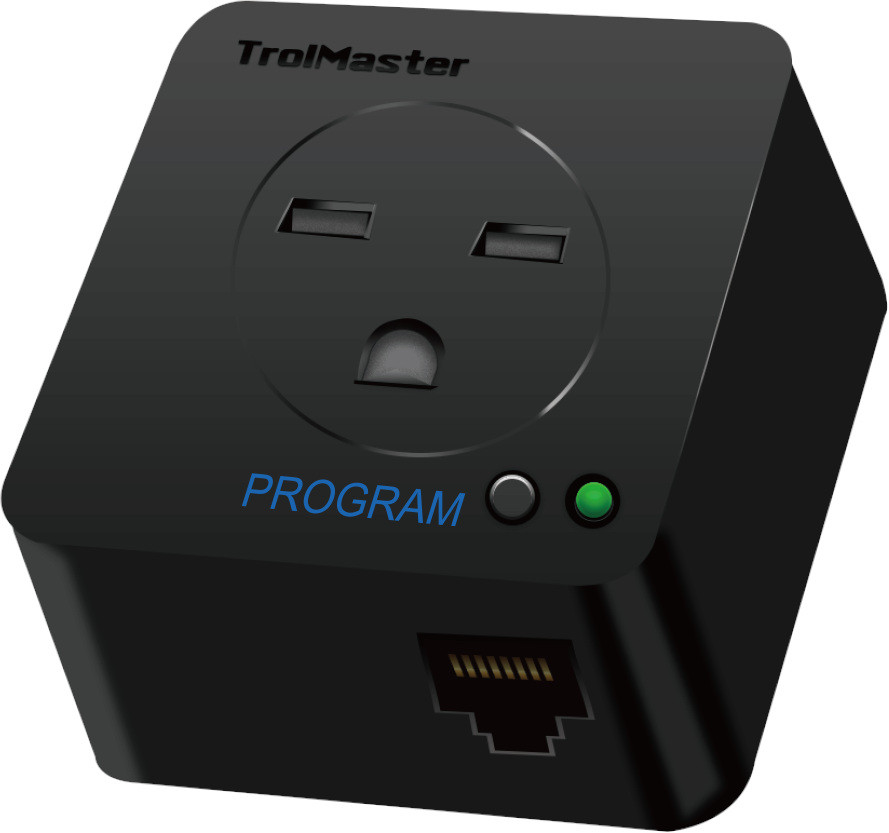

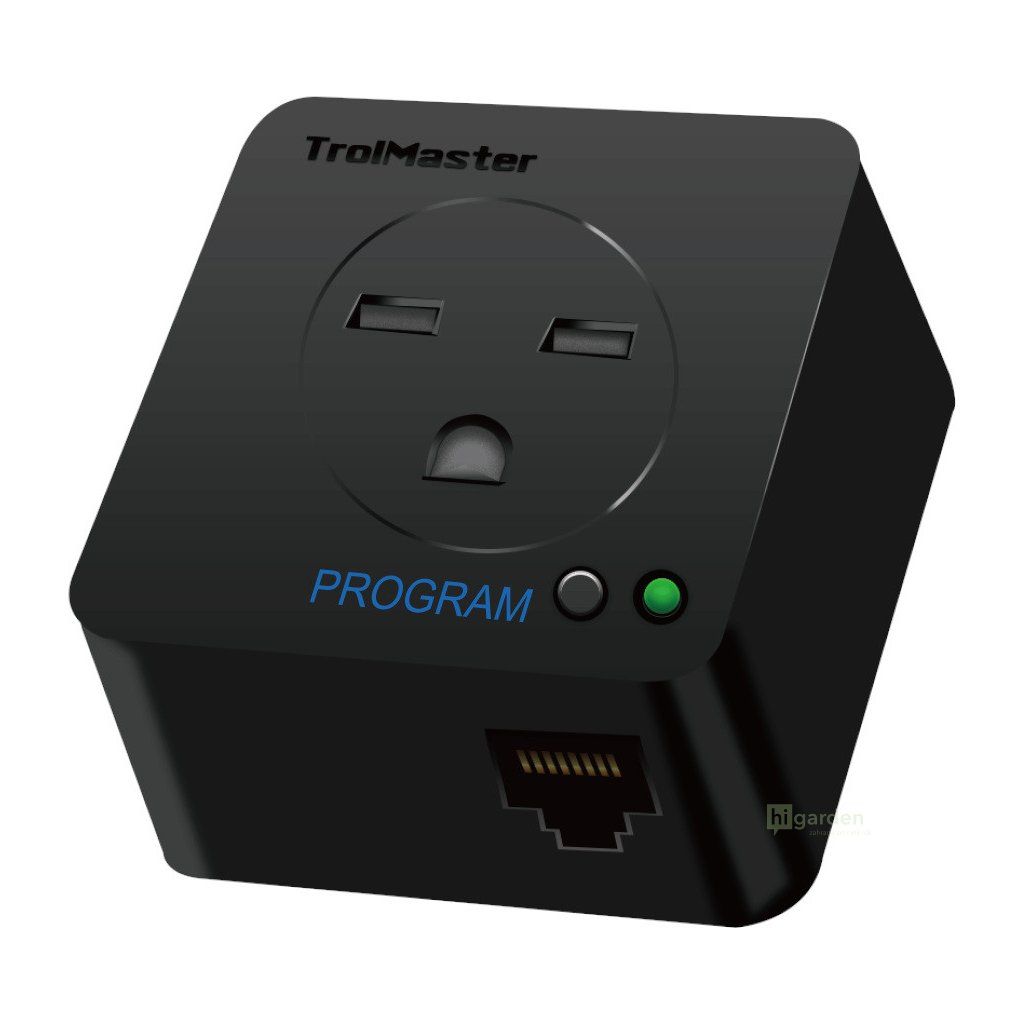

Signaling LEDs:
- flashes green FAST: If the LED flashes fast, it means that the module has not been addressed to the controller OR that the module does not have a good connection to the controller.
- Press the small button on the module to address/connect the module when it is first installed.
- SLOW BLINKING GREEN LED: If you see a slowly blinking green LED, it means that the module is addressed and connected to the controller and the module is currently powered off.
- BLINKING GREEN: If you see the LED steady (not blinking), it means that the modules are addressed, connected and currently powered on.
- Flashing Red: If the LED changes to flashing red, it means that the module is overloaded. To reset the overload, disconnect the module from power.
- By pressing and holding the button on the DSP-2 module, users can manually reconfigure and power on/off the module.

Technical Specifications:
- Input Voltage: 240V AC, 50/60 Hz
- Output Current: 10A
- Output Voltage: 100-240V AC, 50/60 Hz
- Operating Temperature: 0-50°C
- Operating Humidity: < 90% RH
