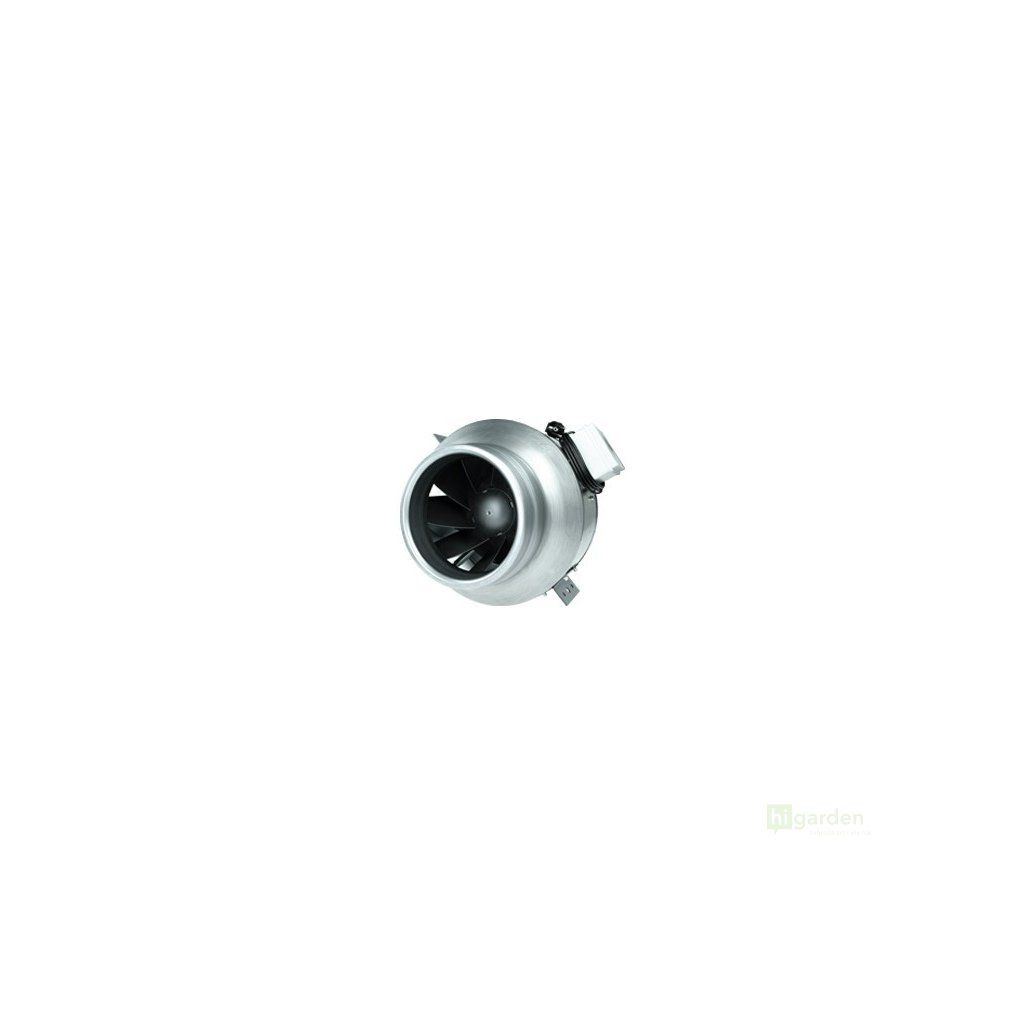

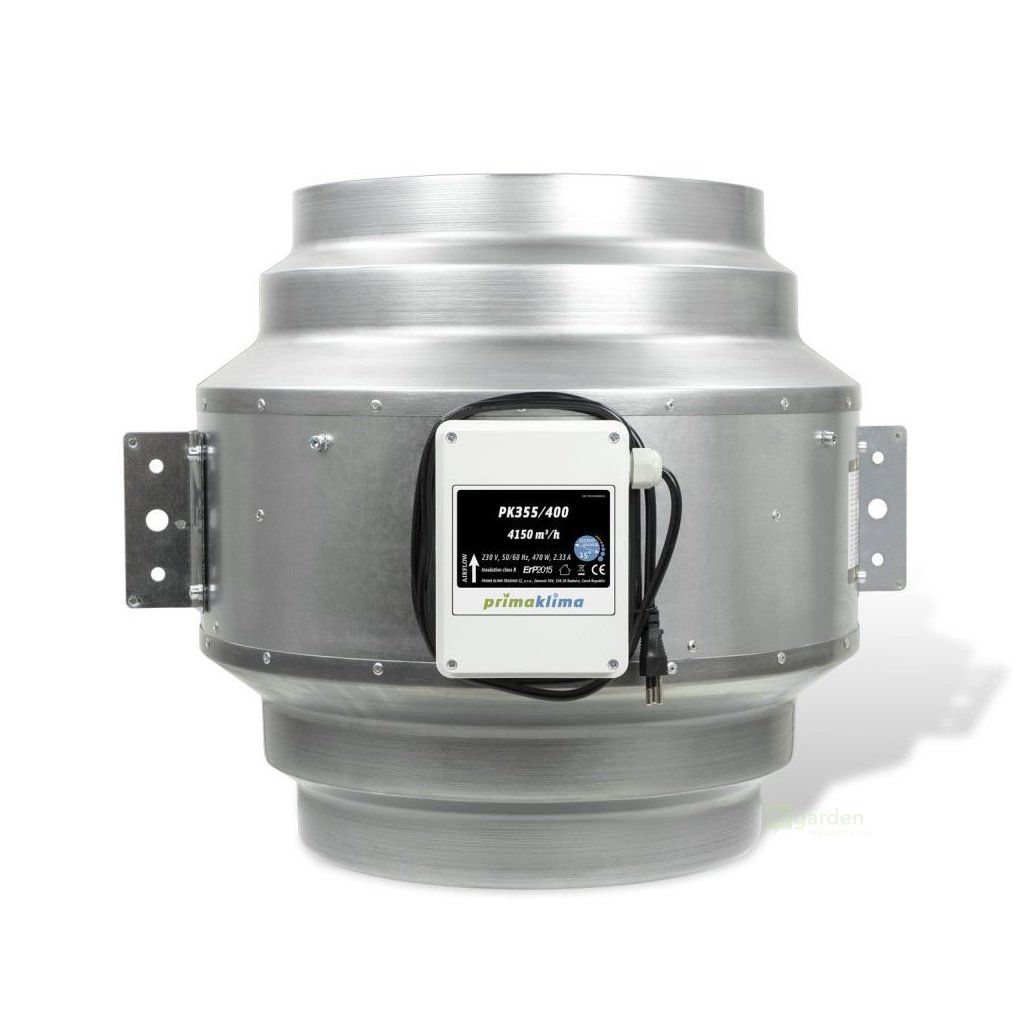

Prima Klima fan Blueline PK355/400 - 4150 m3/h
Code: PK-355/400Related products
Product detailed description
The metal fan with powerful motor Prima Klima PK355/400 from the Blueline series has been developed for continuous operation. Despite the extraordinary air flow, it is very quiet and energy efficient. The Prima Klima Blueline PK355/400 exhaust fan is suitable for large rooms and ventilation systems with a diameter of 355 or 400 mm.
The advantages of the top metal Prima Klima Blueline fans:
- premium German ZIEHL-ABEGG motor developed specifically for non-stop operation
- adjustable speed
- high energy efficiency
- noise level only 72 dB
- extreme airflow and an amazing 80,000 hour lifetime are typical for the entire Blueline range
- robust galvanised steel metal housing
- overheat protection
- built-in handles for easy installation
- cable with plug included
Technical specifications:
- Motor: ebm papst
- Flange diameter: 355/400 mm
- Maximum air flow: 4150 m3/h
- Maximum operating temperature: 50° C
- Power: 470 W
- Voltage: 230V 50/60 Hz
- Current: 2.3 A
- Dimensions: 480x500 mm
- Weight: 18.5 kg
- Mounting: horizontal and vertical
When installing, please take into account the high weight of the fan. For more information on how to properly wire and operate the Prima Klima fan from the Blueline series, please refer to the attached files.
Additional parameters
| Category: | Prima Klima Blue Line Ventilators |
|---|---|
| EAN: | 8594171430718 |
| Flange (mm): | 355, 400 |
| Airflow (m3/h): | 4150 |
