Soundproof fan Q-Max EC 2850 m3/h, 315 mm

Quiet performance for demanding environments

Do you need to ventilate a large space reliably and above all quietly? This fan is the ultimate solution, combining exceptional performance of 2850 m³/h with unrivalled quiet operation. Thanks to the unique design, where the powerful motor is integrated directly into the soundproof casing, you get a ventilation system that won't disturb you even when fully loaded.

Quietest operation and maximum efficiency

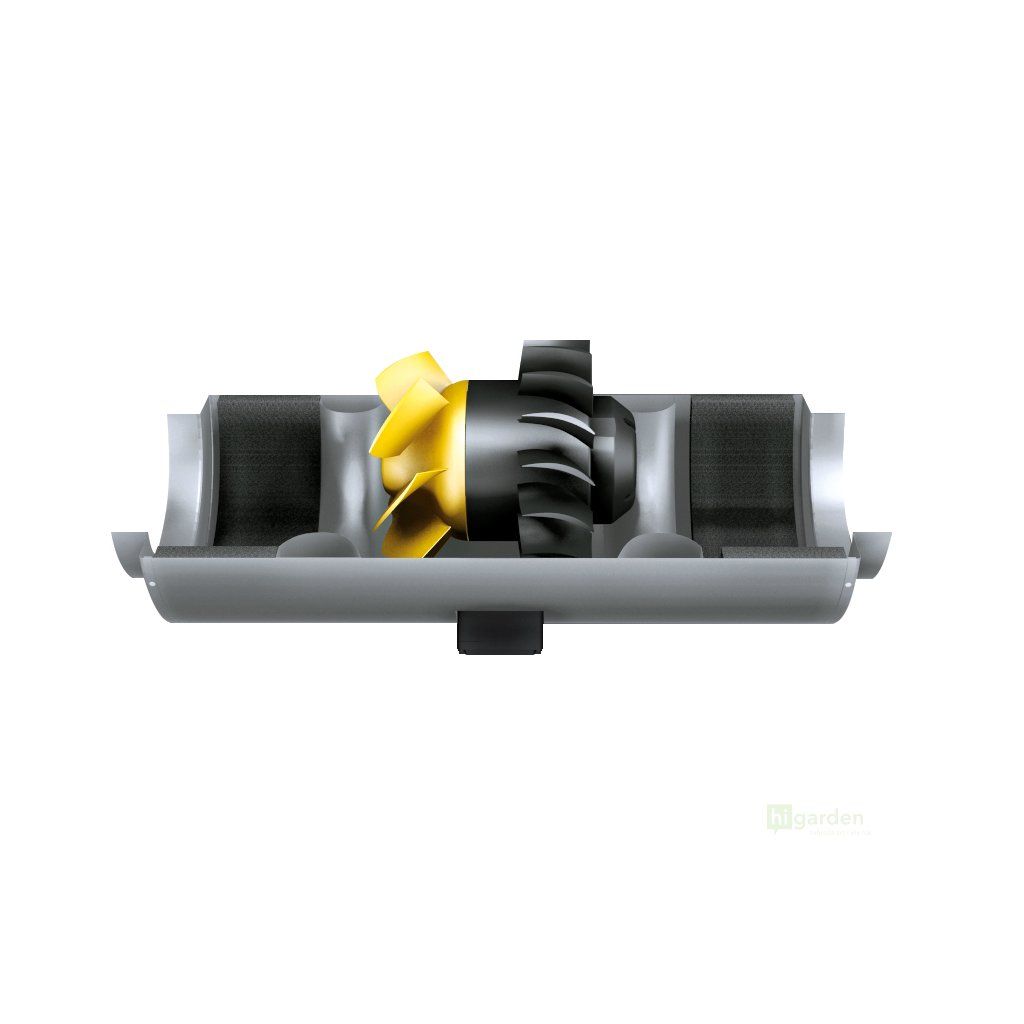

The secret to its quietness lies in its robust metal casing with internal acoustic insulation that absorbs both motor and airflow noise. In addition, the patented 3D rotor and stator system ensures perfectly even airflow without turbulence, further reducing noise and increasing aerodynamic efficiency. The result is powerful yet barely audible operation.

Advanced EC technology and easy control

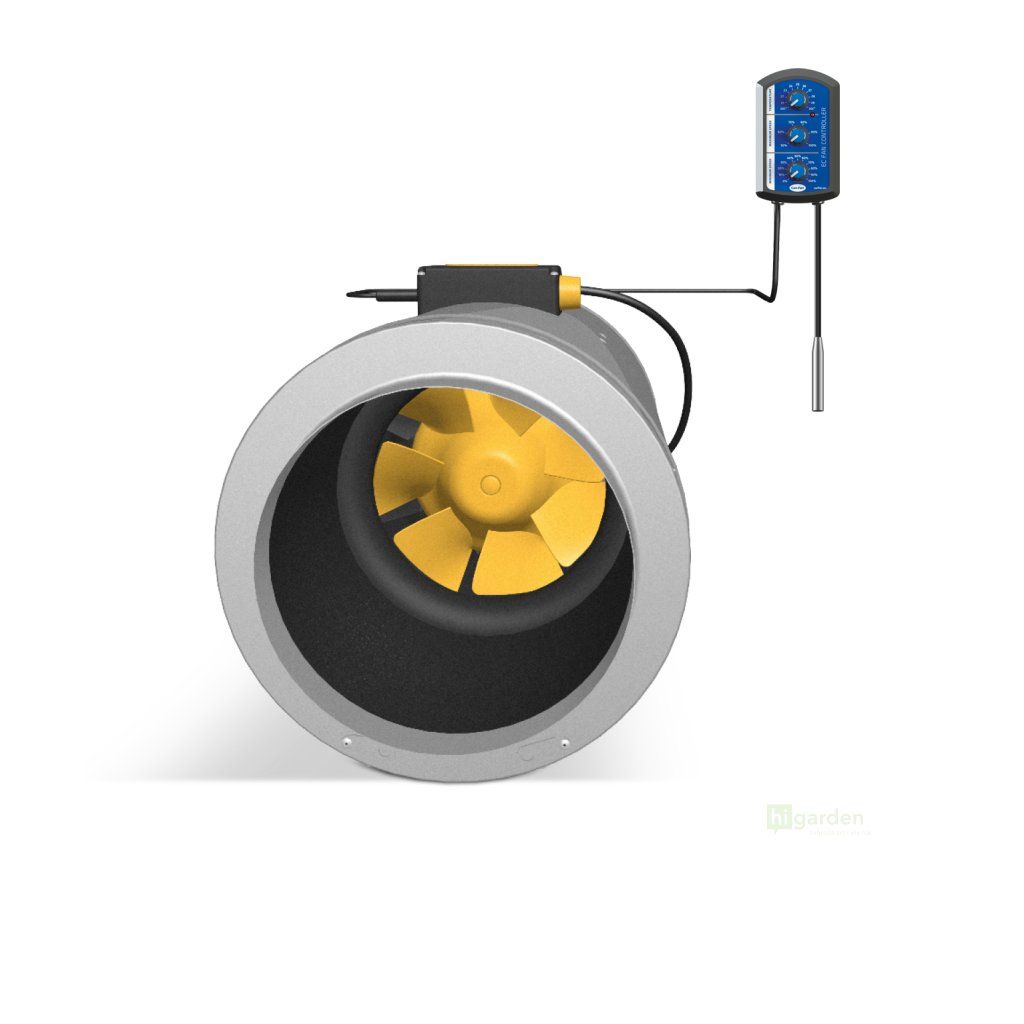

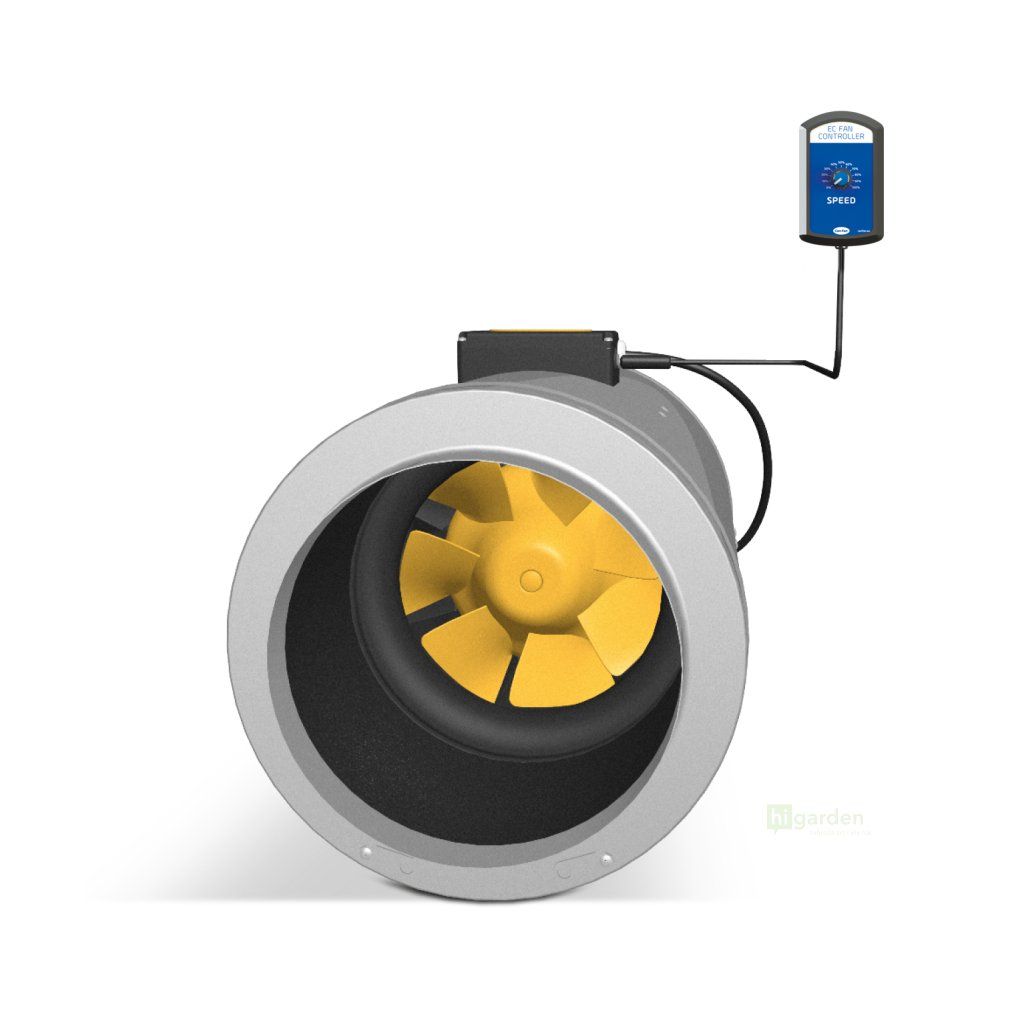

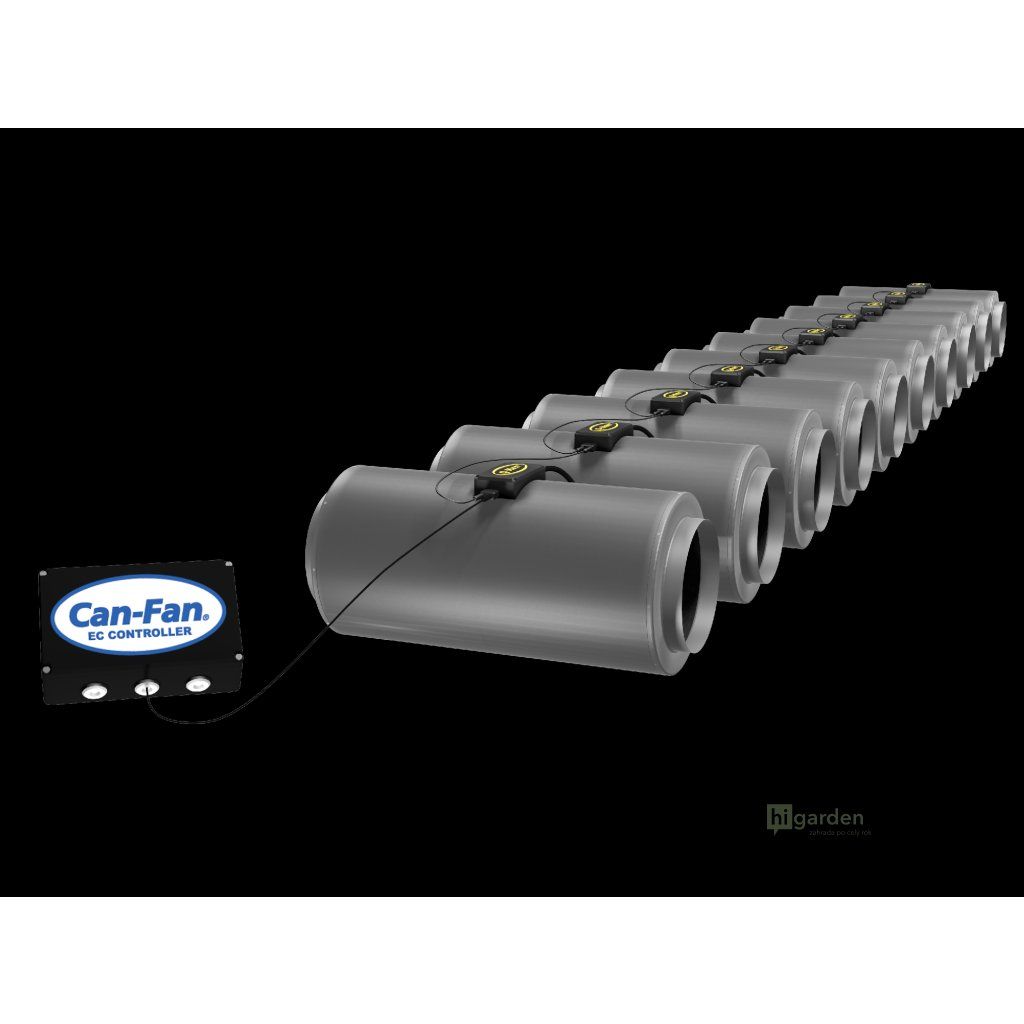

At the heart of the fan is an advanced EC motor that not only guarantees high efficiency, but also significantly lower energy consumption compared to standard AC motors. It allows completely smooth speed control without any buzzing or vibration. In addition, you can connect and synchronously control up to 10 of these fans at the same time using an external EC controller, which is ideal for large-scale systems.

Robust design and versatile use

Thanks to its performance and quiet operation, this fan can be used in a wide range of environments. It is the perfect choice for ventilating grow rooms, workshops, warehouses, laboratories, studios and other areas requiring constant and quiet air circulation. For growers of annual plants such as tomatoes, chillies or herbs, it provides the optimum climate for healthy growth and a bountiful harvest.

The entire construction is made in Germany, which guarantees precision workmanship and a long service life. In addition, integrated handles make it easy to mount on the wall or ceiling.

Key benefits

• Extremely quiet operation - thanks to the integrated silencer and acoustic insulation.
• High efficiency - modern EC motor with low energy consumption.
• Huge performance - air flow up to 2850 m³/h for large spaces.
• Smooth control - speed control without unwanted noise.
• Robust metal body - ensures long life and durability.
• Easy installation - integrated hanging brackets for quick installation.

Parameters

• Air flow: 2850 m³/h
• Flange diameter: 315 mm
• Power consumption: 287 W
• Maximum current: 2 A
• Voltage: 230 V
• Noise level: 62 dB
• Weight: 18.5 kg
• Maximum operating temperature: 40 °C

Here you can find the parameters of theQ-Max EC315-2850.
