Dosatron Hobby System, basic set

Dosatron Hobby System: professional automatic fertilisation for your plants

Introducing Dosatron's revolutionary Hobby System - a modular watering and fertilizing system that brings professional, water-powered dosing technology to the home growing environment. This kit is designed specifically for the hobby grower who wants to achieve consistent and repeatable results without the daily manual mixing of nutrient solutions. The system operates completely without electricity, using only water pressure, ensuring reliability and low operating costs.

Key advantages of the Dosatron Hobby system

• Error-free automation: forget measuring and manual mixing. The system ensures accurate and proportional dosing every time, eliminating the risk of burning or under-nutrition of the plants.
• Independence from electricity: the innovative hydraulic drive uses only the energy of the flowing water. The system is therefore 100% reliable even in the event of a power failure and completely safe for use in wet environments.

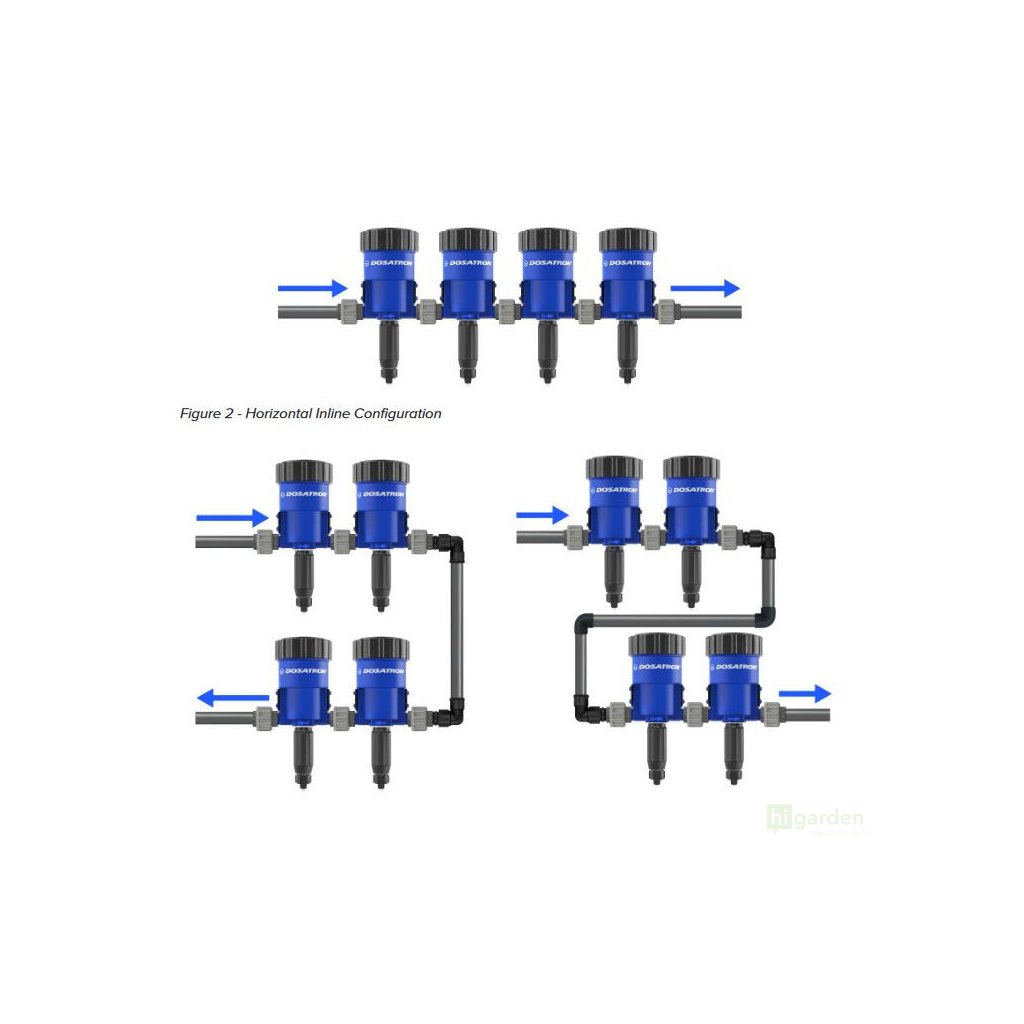

• Modularity and flexibility. So you can build a system tailored exactly to your multi-component fertiliser plan.
• Versatile: The system is compatible with the vast majority of liquid and water-soluble powder fertilisers, organic supplements, root and flower stimulators, enzymes, beneficial bacteria and pH adjustment products.
• Designed for the hobby grower: the kit is optimised in size and price for home growers, greenhouses or smaller gardens. Ideal for sets of 12 to 96 plants.

Working principle: Water-driven precision

At the heart of the system is the patented Dosatron technology. Flowing water drives a hydraulic piston inside each pump. This piston draws a precisely set amount of concentrate (fertiliser or additive) from the storage container and injects it directly into the water stream. Dosing is strictly proportional - the greater the water flow, the faster the piston works. The result is a perfectly homogeneous nutrient solution whose concentration is always the same, regardless of changes in pressure or flow in the irrigation system.

Who is the Dosatron Hobby System for?

This system is ideal for all hobby growers who want to take their growing skills to the next level. Whether you grow in soil media, coconut or hydroponic systems, Dosatron will save you time and ensure your plants always get exactly what they need. Perfect for growing spaces with an average of 4 to 6 grow lights and for growing annuals, herbs, chillies or tomatoes.

Wide range of uses and applications

• Automatic dosing of multi-component basic fertilisers.
• Precise application of root and flower stimulators at different stages of the cycle.
• Continuous adjustment of the pH of the irrigation water by adding pH+ or pH- regulators.
• Dosing of enzyme preparations and beneficial micro-organisms.
• Regular cleaning and maintenance of irrigation systems using sanitizing agents and much more...

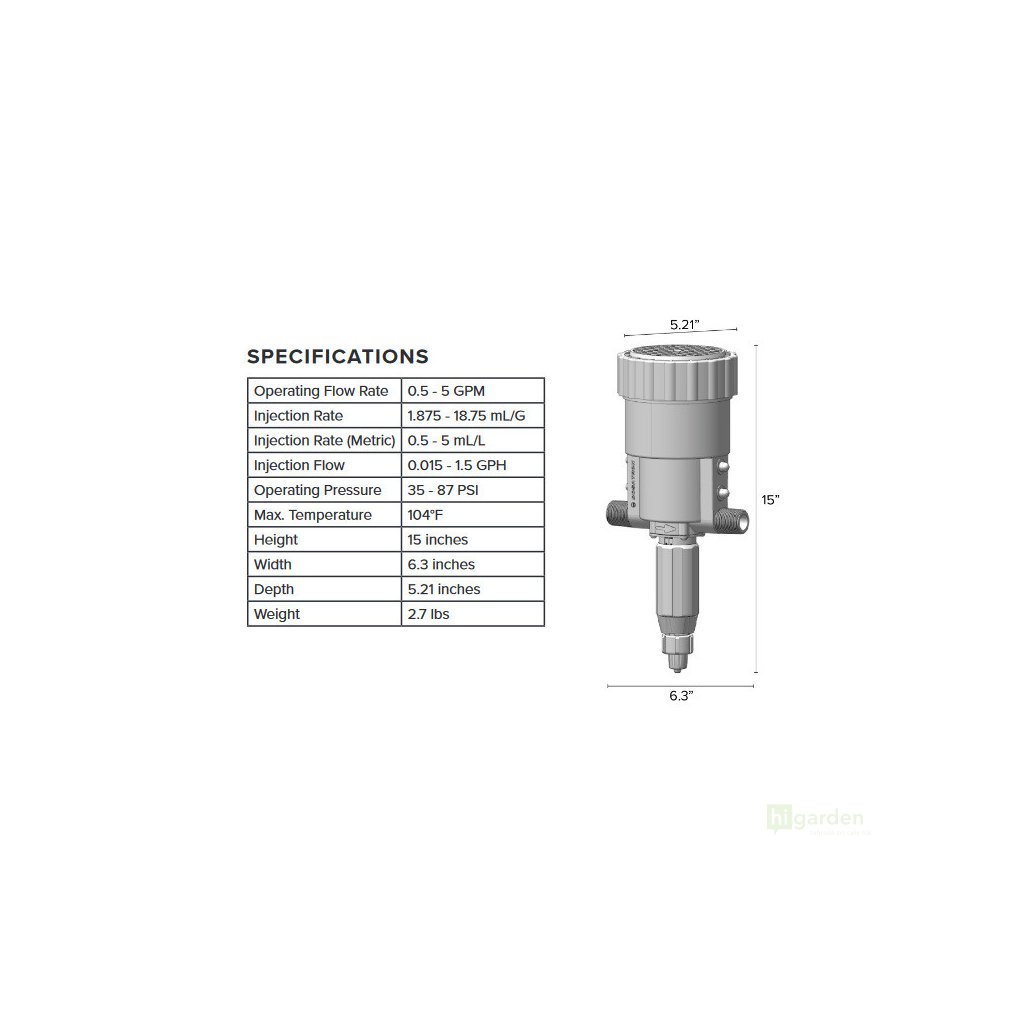

Technical specifications

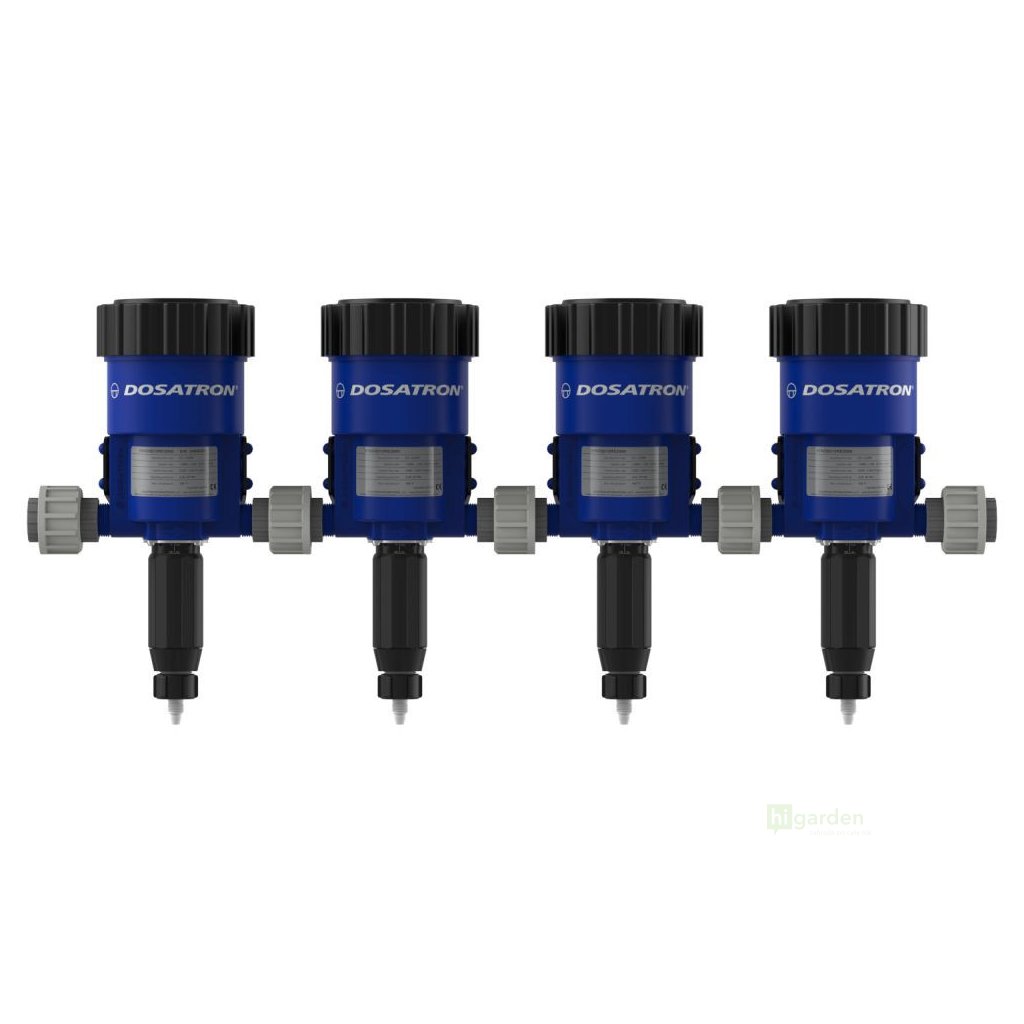

• Number of pumps in the base: 4
• Water flow through the system: 1.89 - 18.9 l/min
• Operating water pressure: 2.5 - 6 bar
• Dosing range (per pump): 0.05 - 0.5%
• Dosing ratio (per pump): 1:2000 to 1:200
• Connection (inlet/outlet): ¾" male thread
• Maximum water temperature: 40 °C
• Drive: Hydraulic (no electricity required)
• Dimensions of the assembled system: 300 x 315 x 450 mm
• Weight of complete system: 6,585 kg

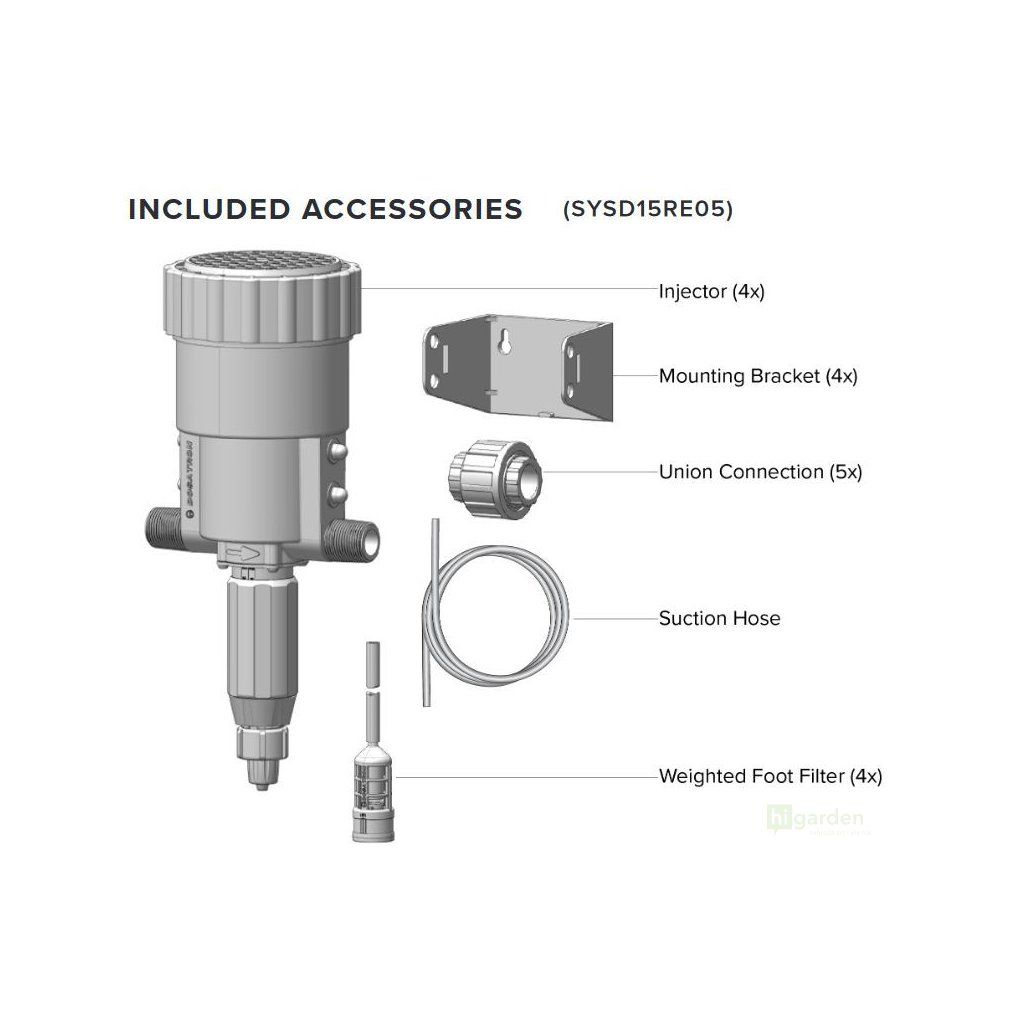

Package contents

• Mounting bracket for wall mounting

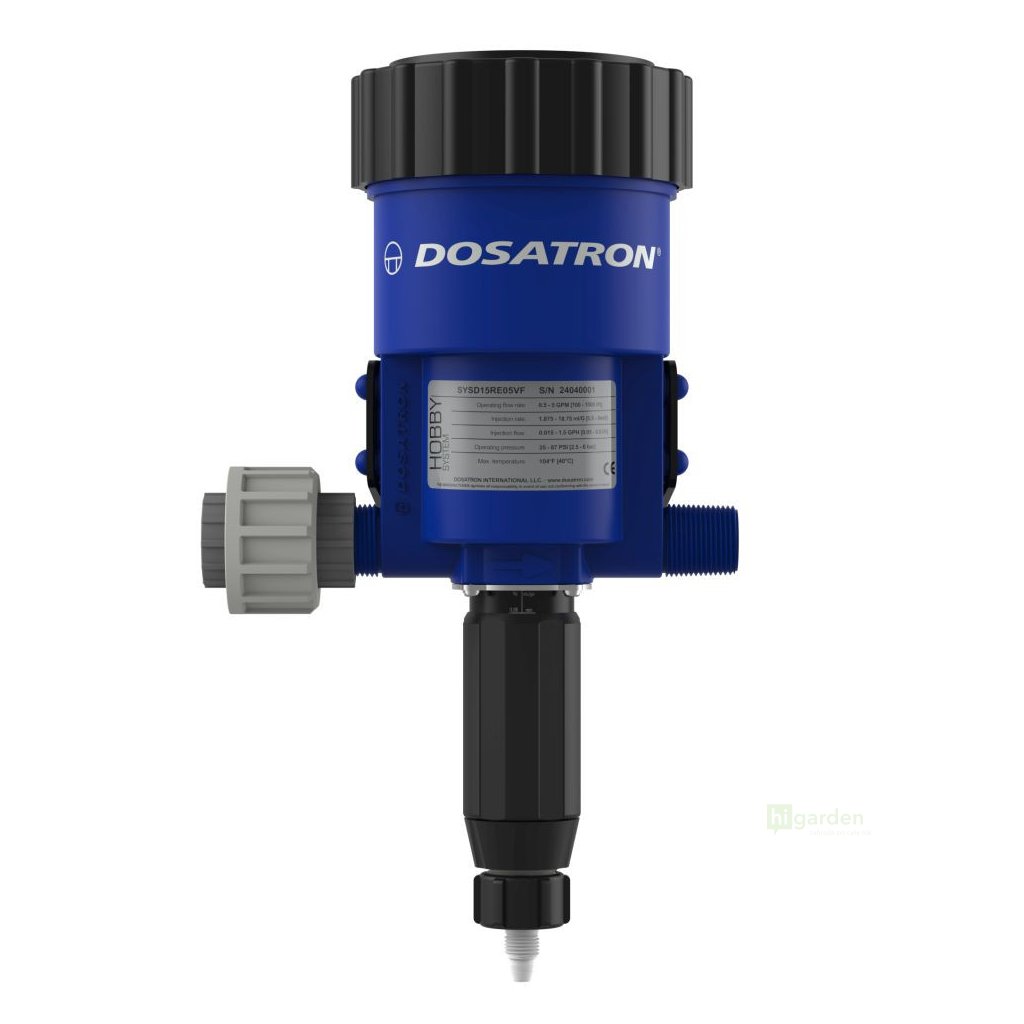

• 4x Dosatron dosing pump D15RE05VF
• Connection fittings to assemble the system
• Suction hose with weighted strainers (for each pump)
• Quick start guide
